Nomenclature
Collectively gather all your relevant nomenclature information in one place in TW. Nomenclatural data are separated from but connected to the biological taxonomically-related information about such topics as host information, genetic/genomic or other biological associations data about a given biological taxon.
Nomenclature Quick Start
TW provides a suite of common tasks help you to manage your nomenclatural and related data. This section assumes you have some familiarity with the TW user interface conventions and introduces new user interface features where needed. First, please familiarize yourself with the kinds of tasks TW offers.
Nomenclature
Tasks

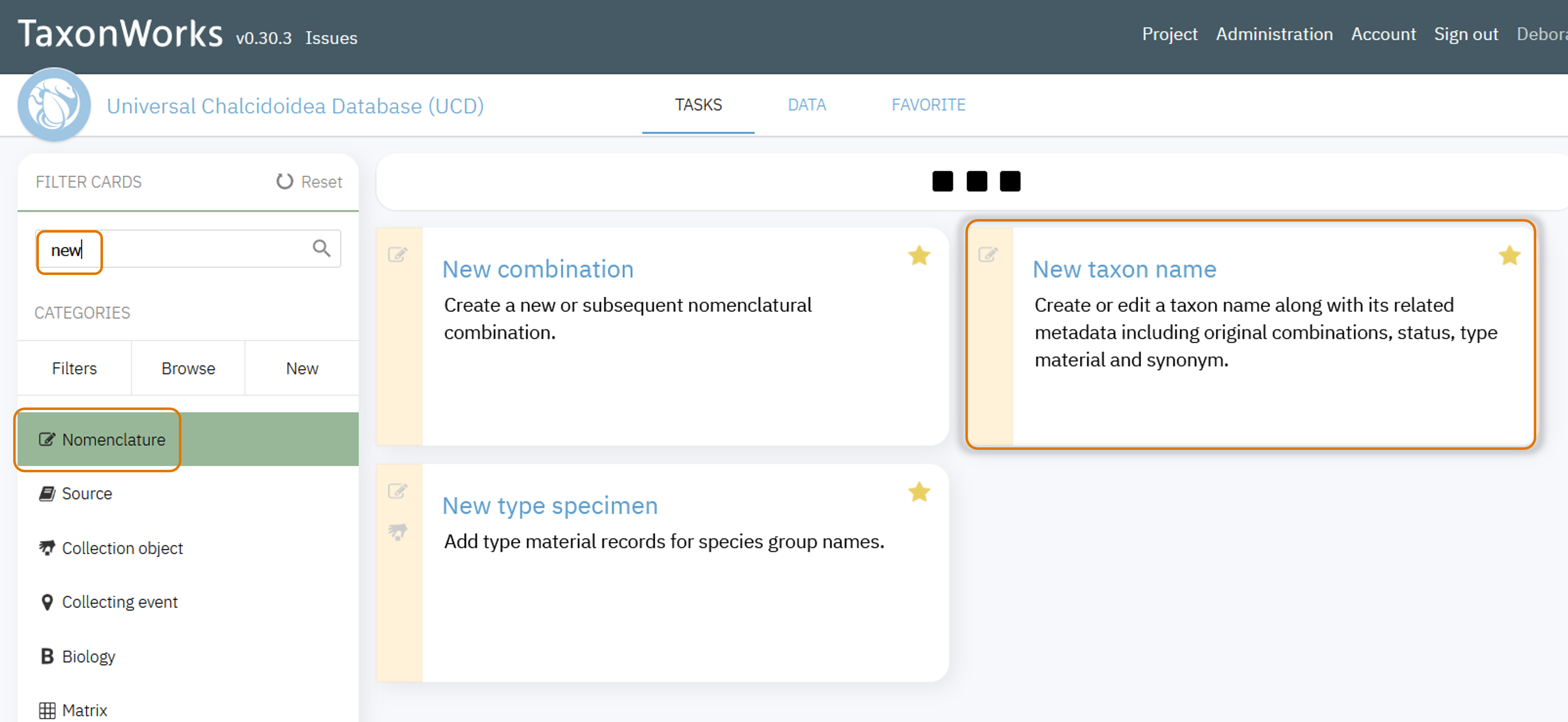

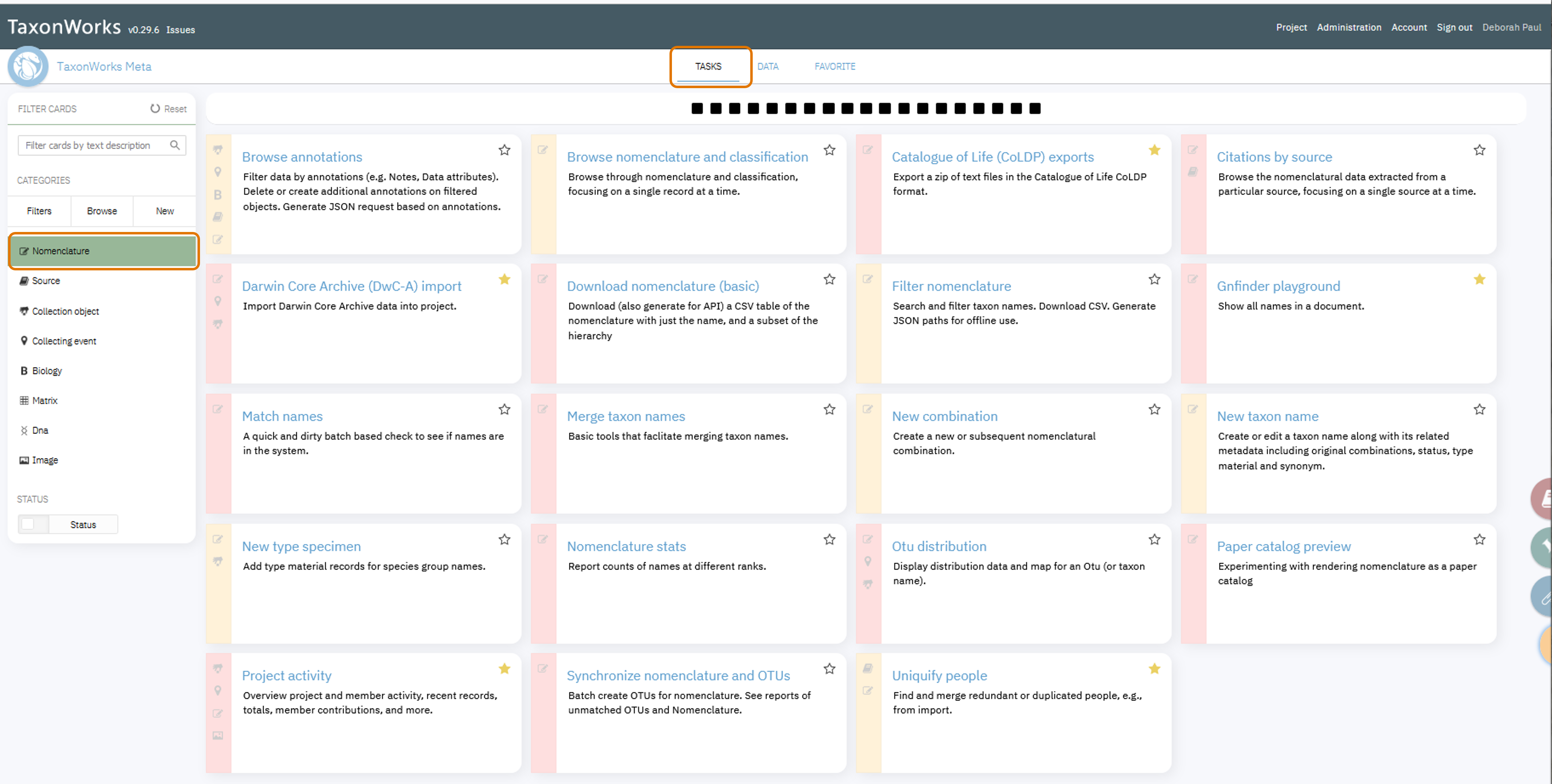

Finding - Navigate to the
Tasks
list - Use the left side bar filter (on the left) to
Select
Nomenclature
Nomenclature tasks
Currently useful tasks are yellow (red = experiment, works, but might not last, or might radically change; yellow = more or less stable, some changes anticipated but basic functionality will remain same; green = you can write a manual, won't change for any reason).
Browse nomenclature
, New taxon name
, and New combination

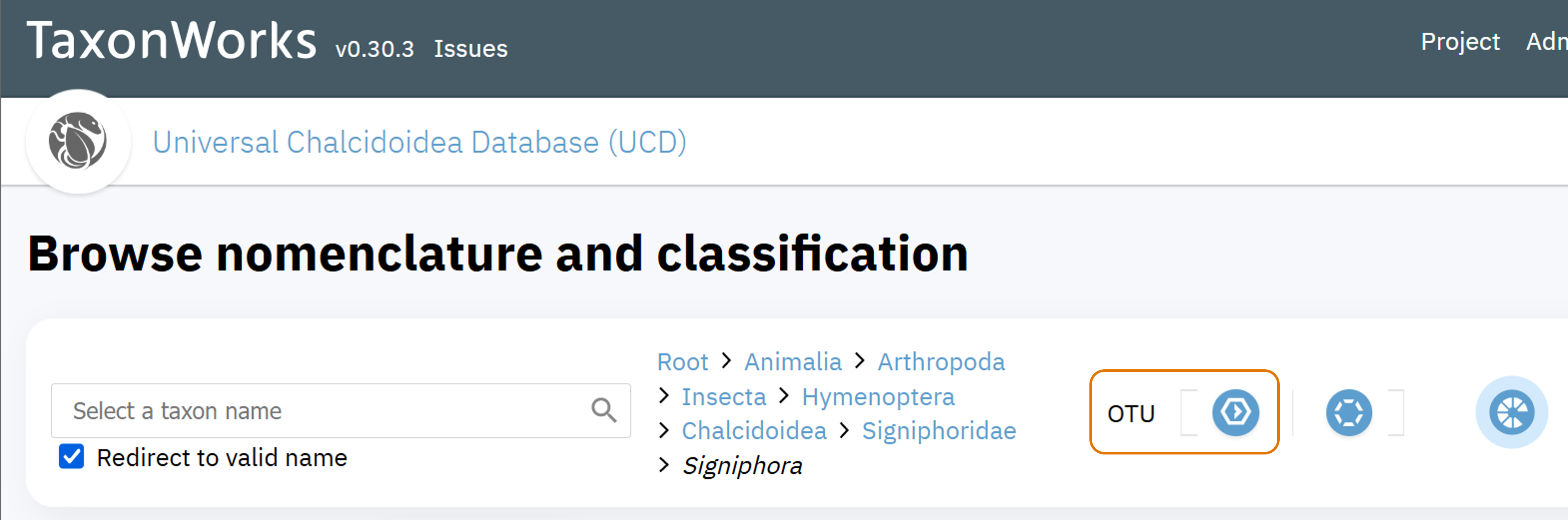

are useful tasks to add, view, and modify existing classification. Browse nomenclature
provides a convenient way of navigating from one Taxon Name

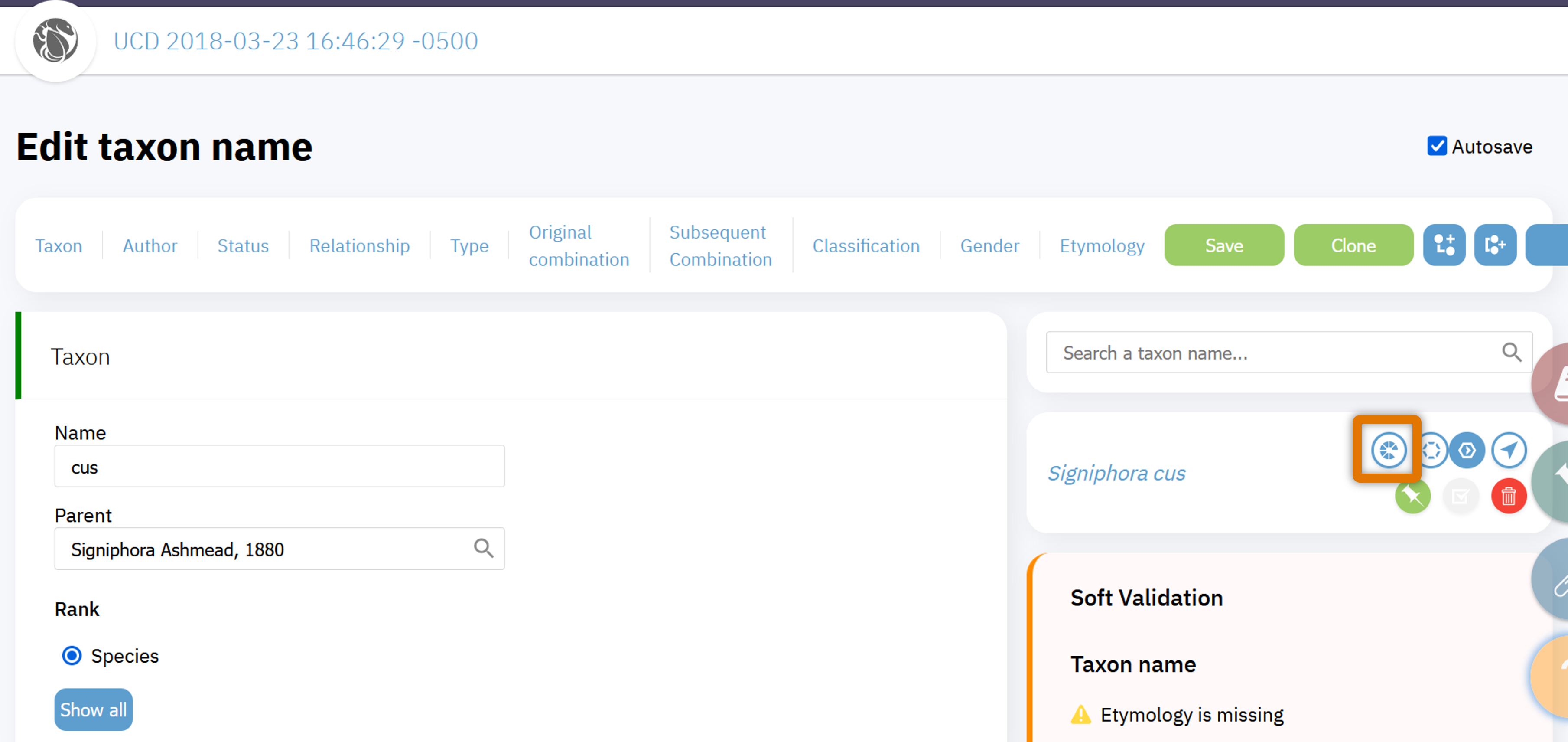

to another. It also gives you an option to quickly jump to the Edit Task
.

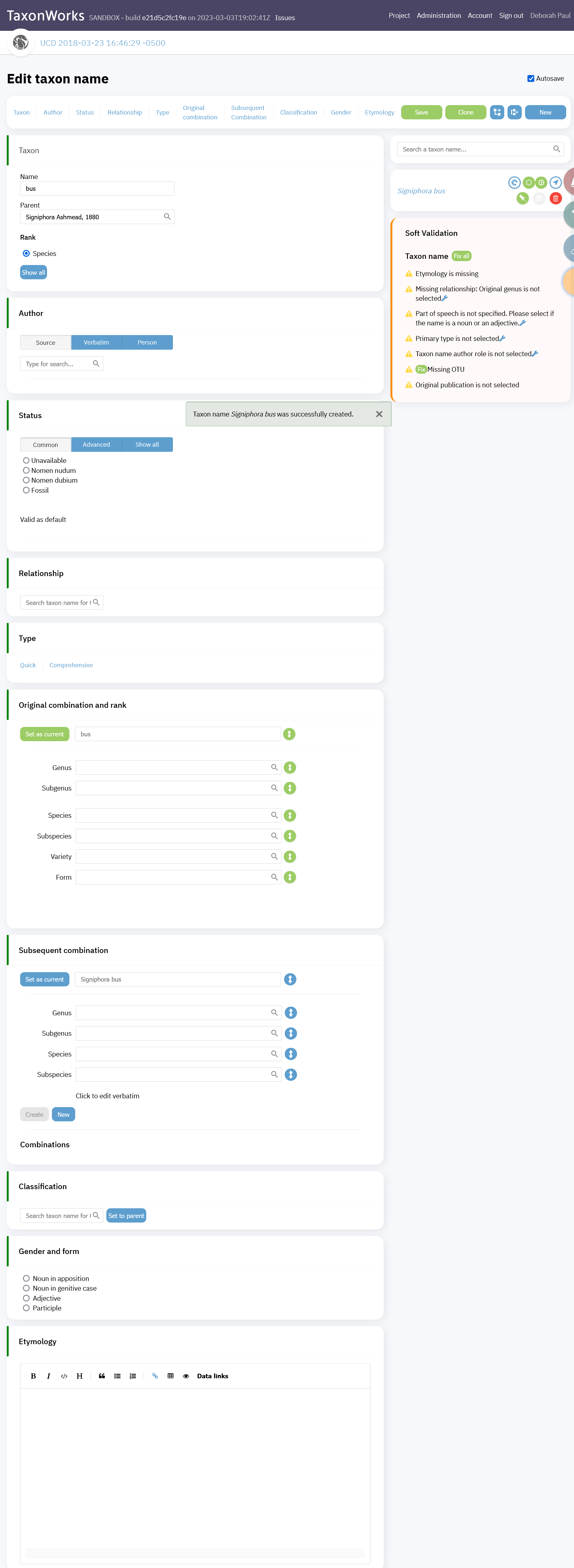

Curating data

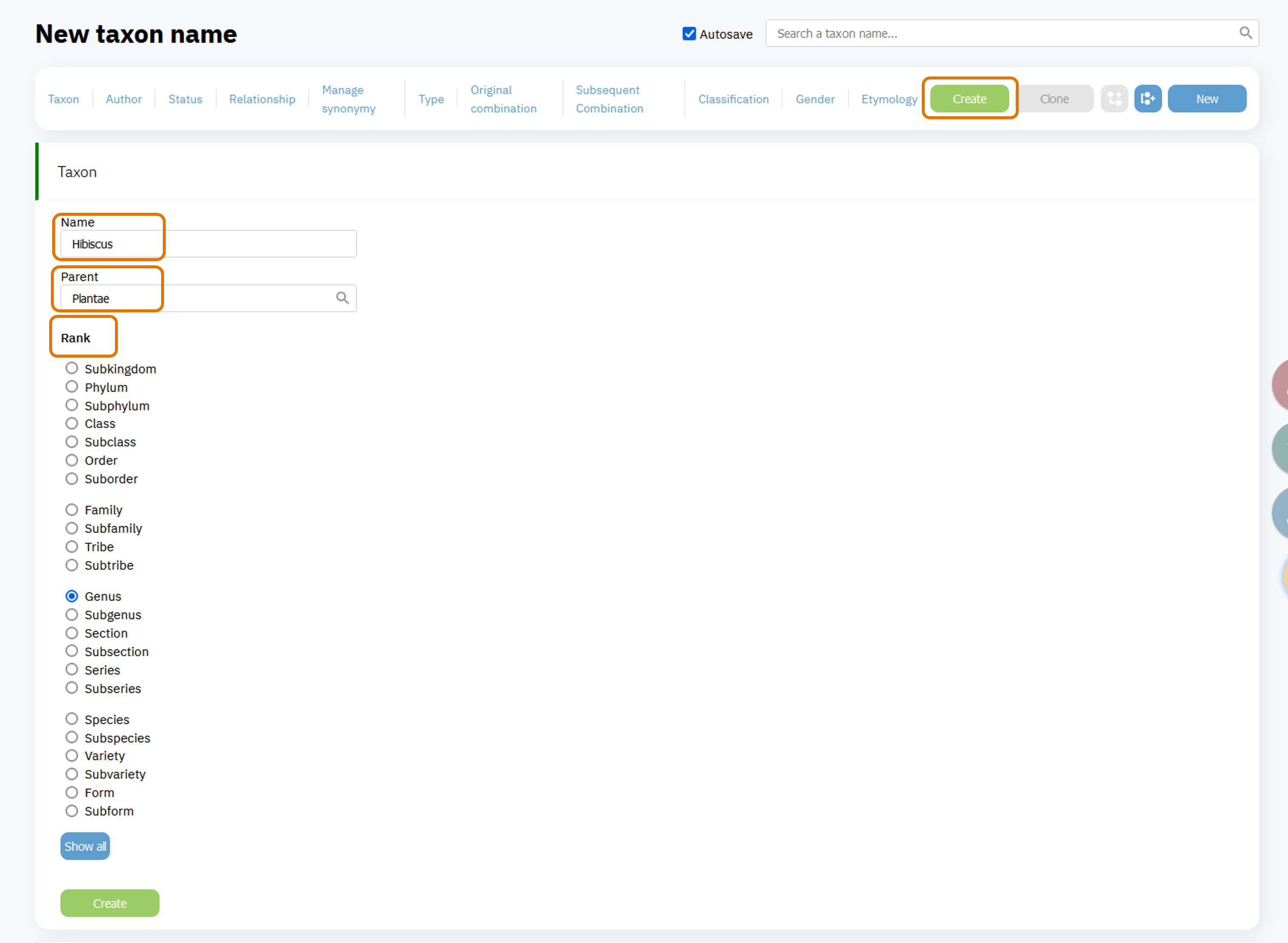

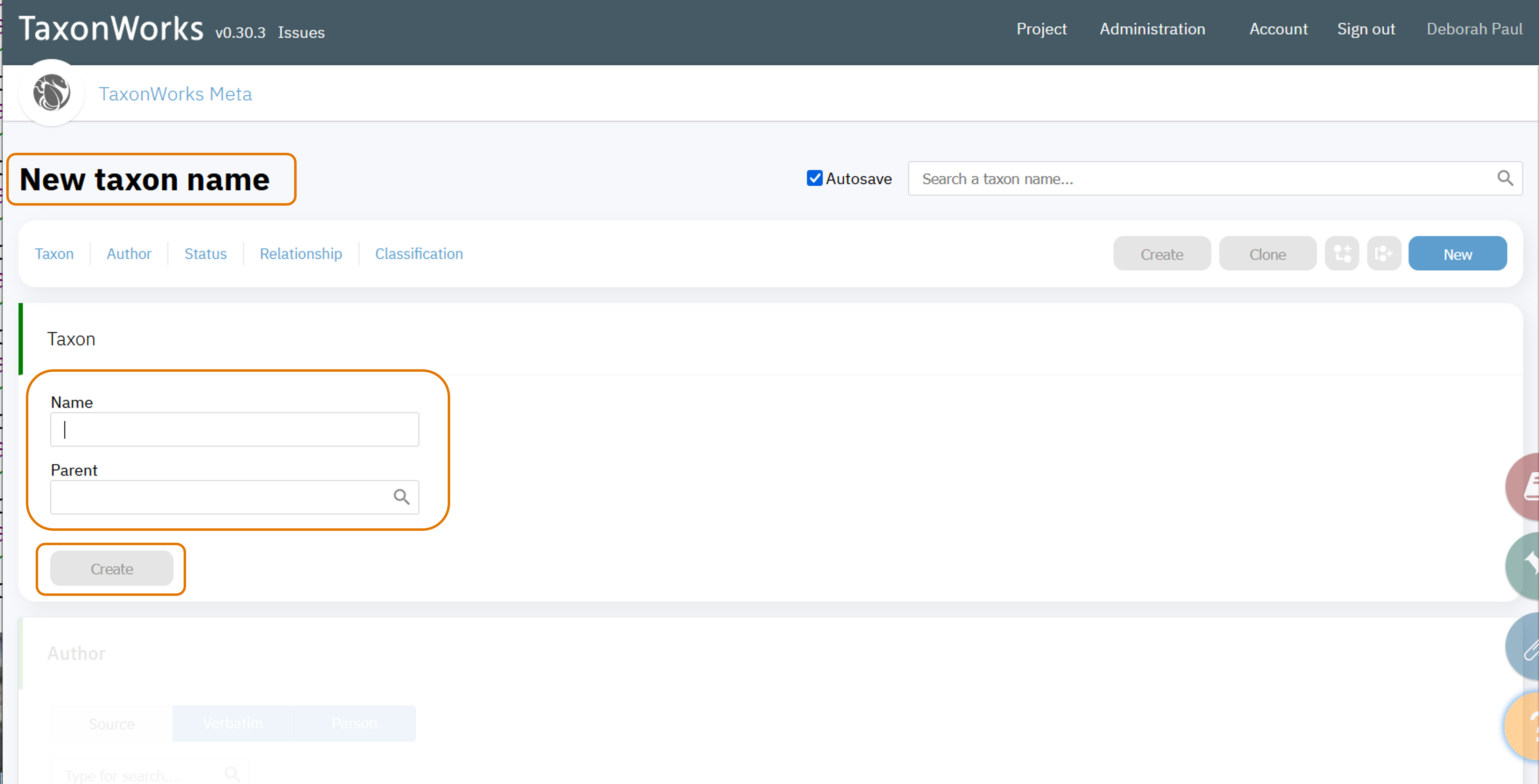

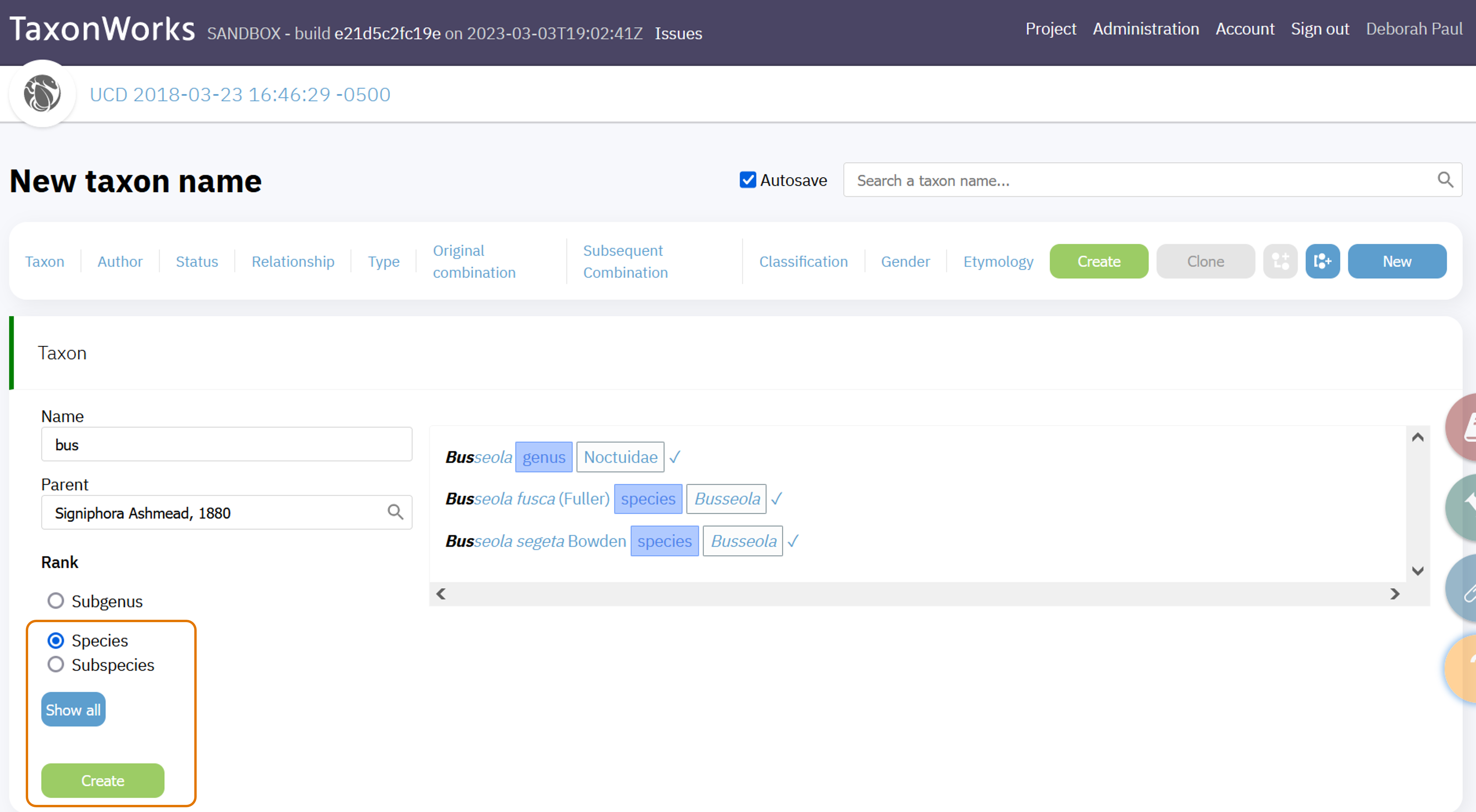

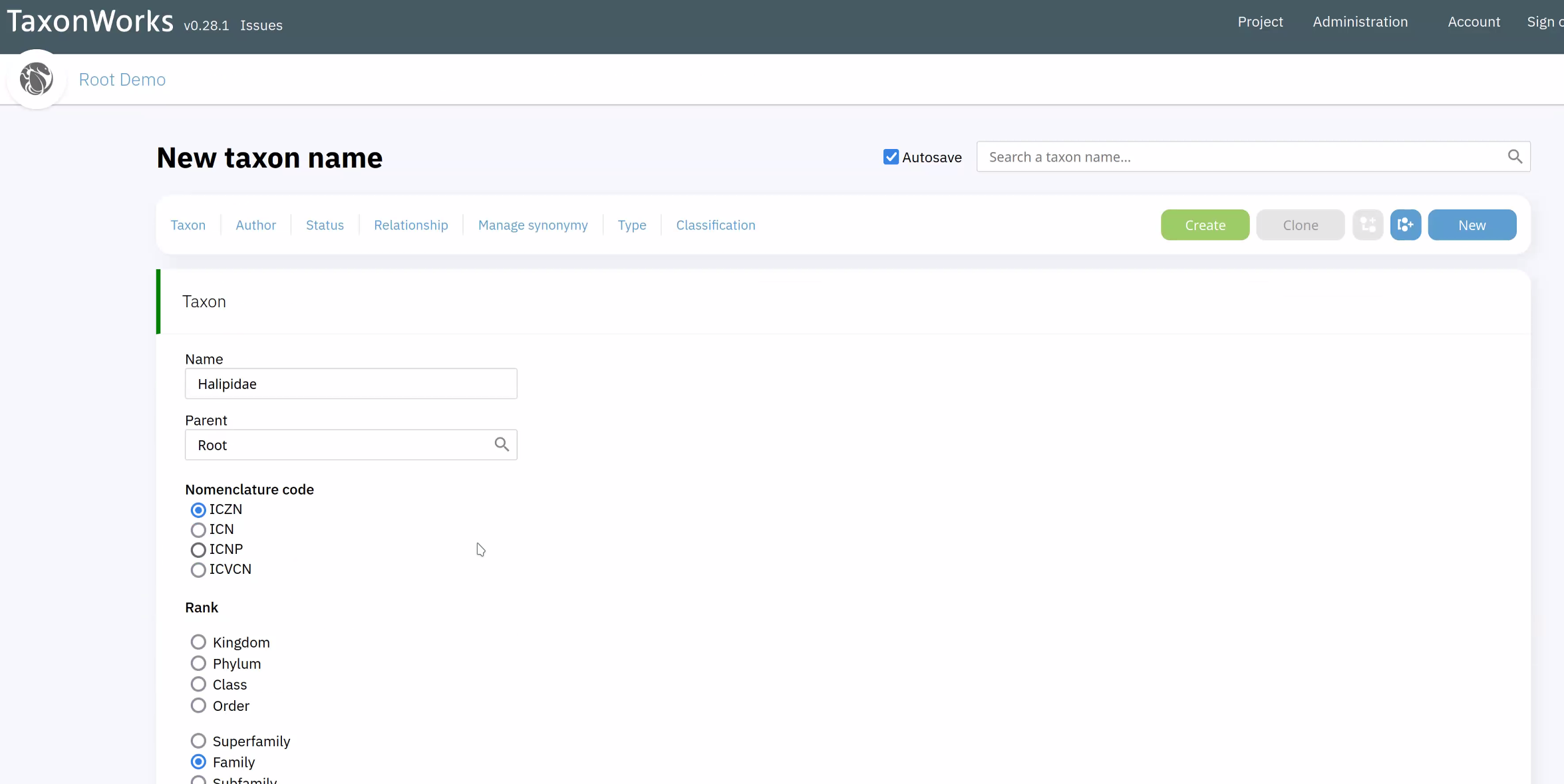

Basic information
All Taxon Names
are stored as uninomials (called Protonyms
) in TaxonWorks. A hierarchical nomenclature is selected to provide the maximum level of flexibility of classifications. Three fields are required to create a Taxon Name record in the database: name
, parent
, and taxonomic rank
. The Parent is any valid taxon of a rank higher than a new one. This section is the only section of the form which requires the use of the Save button. All other sections of the form use autosave mode.

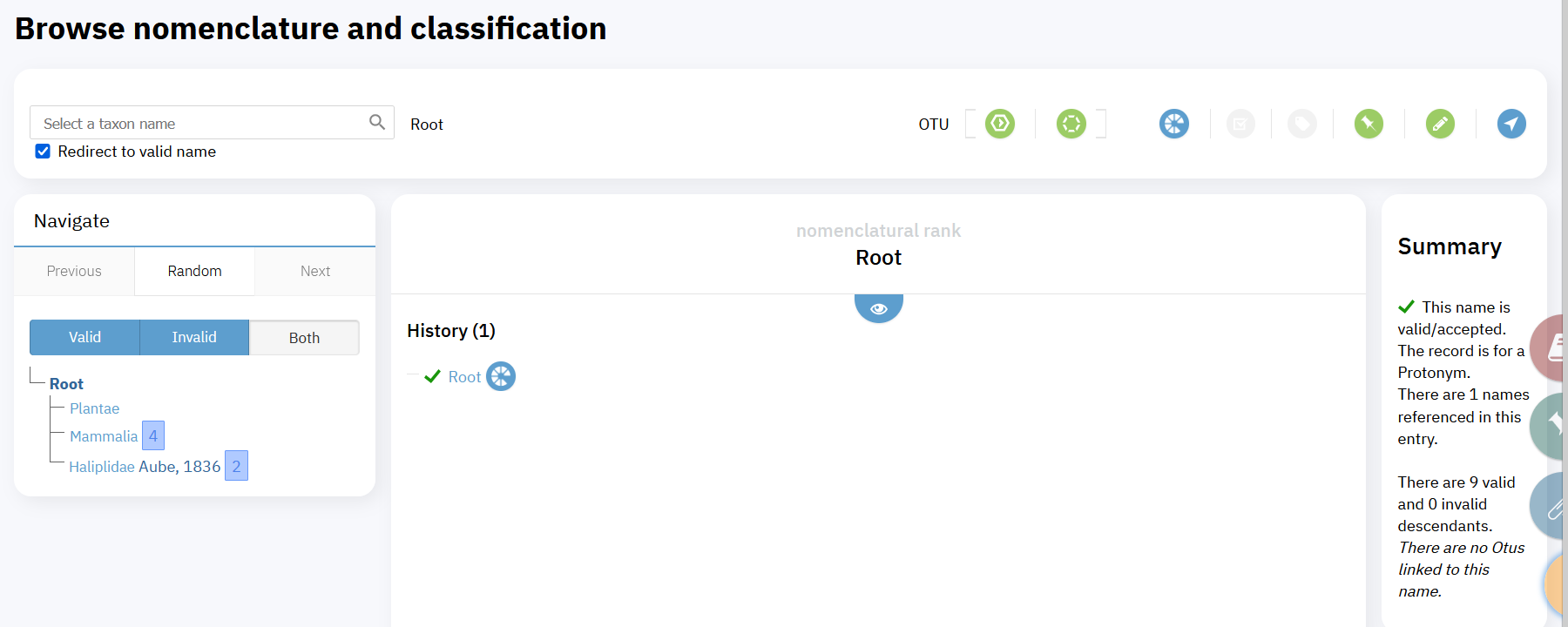

The highest rank taxon in a hierarchy is Root
. This is a default Taxon and can not be modified, it is created when the project is first initiated. The first taxon attached to the Root requires selection of the Code of Nomenclature (ICZN, ICN, ICNP, ICTV), this is required to enforce validation rules specific to this particular Code of Nomenclature. All taxa below this taxon do not require selection of the Code, it will be inherited from the parent. The same database may contain taxa covered by different Codes of Nomenclature.
[NEED TO EXPLAIN / example for ROOT]

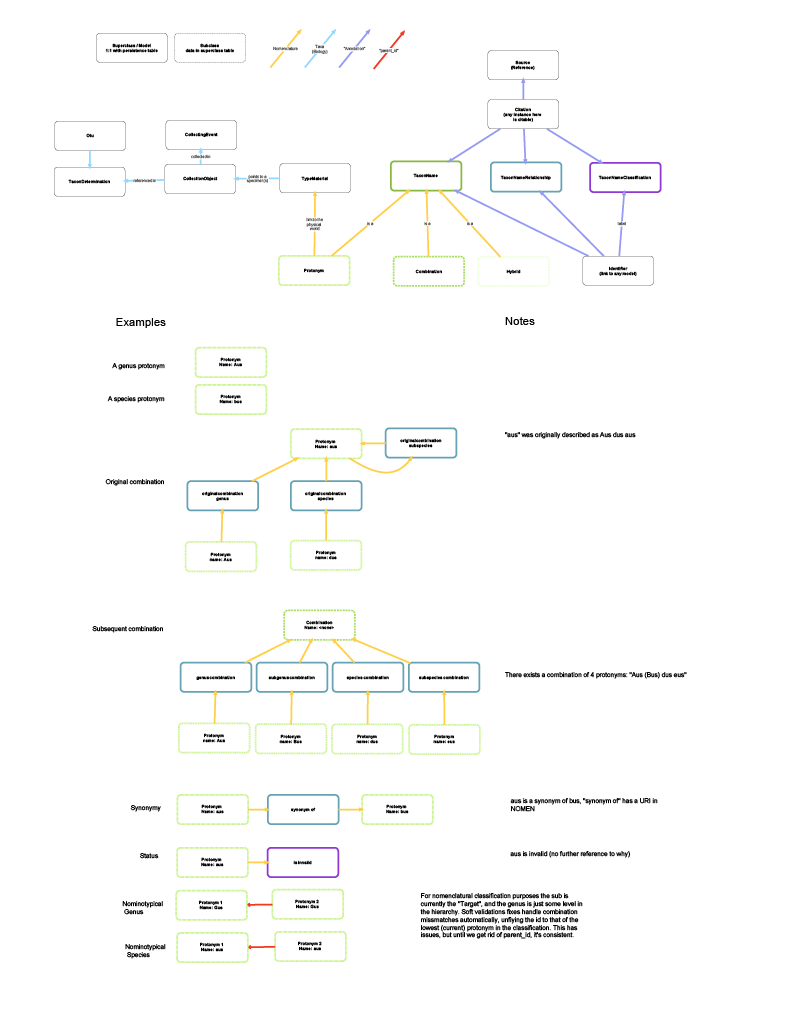

Conceptual approach
To understand nomenclature in TaxonWorks it's important to understand that the basic idea is to accumulate/add new facts rather than update, change, or delete existing records. This is incredibly liberating in many ways, as the system will resolve the current status by inferring across the facts that you have added. As an example, rather than think "how do I change this name to invalid", think "how do I add the fact that so and so stated this name is invalid". The name was valid in the past, now we add a fact to indicate somebody more recently thinks it's invalid. The system will look at the years the facts were applied, summarize the facts as we presently see them. This also lets the complete nomenclatural history, in all its gory detail be recorded.

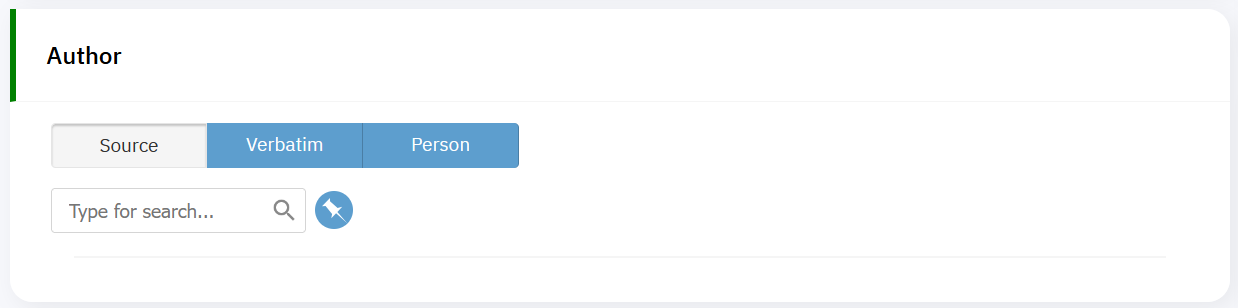

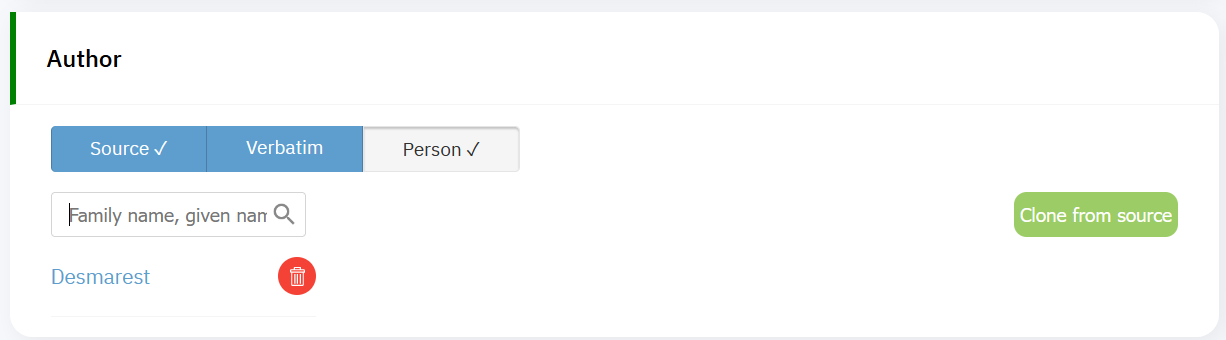

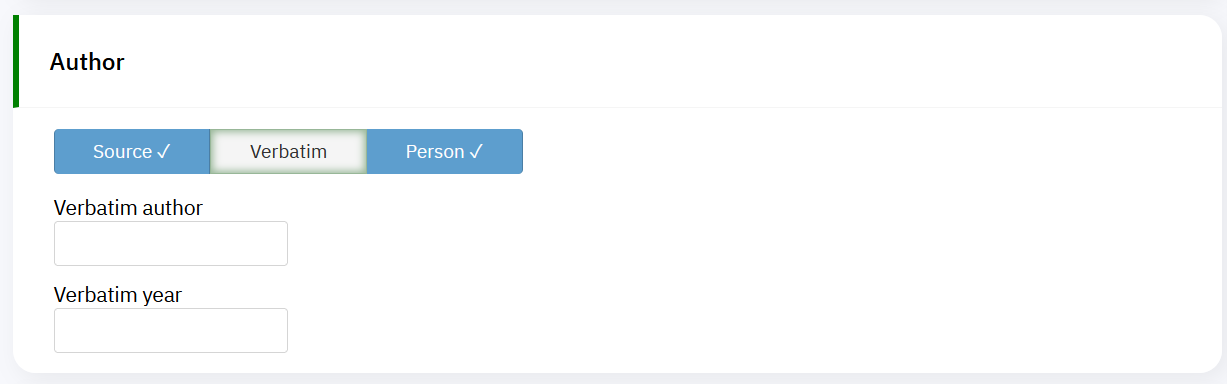

Authorship
This section describes how data are used to set original authorship
of the name (as opposed to a subsequent citation). Authorship can be recorded in three (four?) different ways. If authorship is provided in more than one way it is prioritized and works as follows:
- From the
Verbatim Author
andVerbatim Year
fields - From the
Person
(TaxonNameAuthor) assigned as an author of the taxon name - From the
Source author
andsource year
fields - From the
Person
assigned as an author of the Source (SourceAuthor) assigned as the original citation

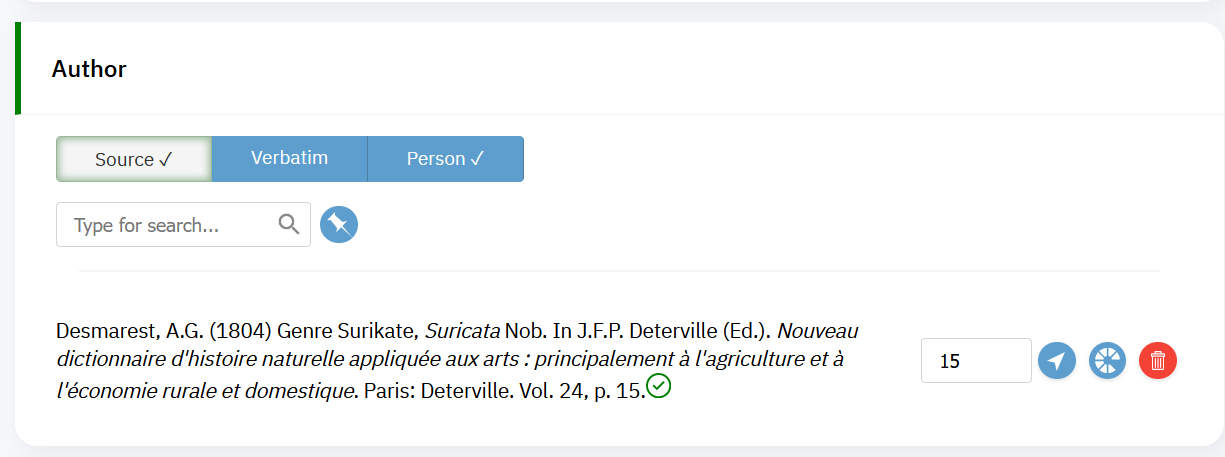

The preferred priority is:
- Assign an original citation (
Source
inAuthor
section) that hasPeople
assigned as authors to it. - Over-ride the authorship in the Source if needed by assigning one or more People from that source as authors in the
Person
section (for example when doing Smith inJones & Smith
). - Use
Verbatim Author
andyear
, if original source and People roles are not provided.
Keep in mind.
TaxonWorks is about creating the links between concepts (e.g. things like People, Collection Objects, Names, OTUs). How those concepts are visualized is a big can of worms. You can assign alternate values to People's names (e.g. abbreviations, alternate spellings) if you want to reflect how an author's name is spelled in different contexts.
ICZN
Parentheses around author/year
- The preferred mechanism to rendering parentheses around a author/year (indicating current placement is different than original) is to assign the
original Genus
in theOriginal Combination
(see below). This will automatically render the name correctly. - If you do not know the original combination, or you wish to "force" the use of parentheses you must use the
Verbatim Author
.- Place the parentheses around the author there:
(Smith)
. The code will automatically include the year in rendering out the name as needed.
- Place the parentheses around the author there:
Year of publication (availability) versus stated year
The year a name becomes available defines its priority for nomenclatural purposes. It may differ from the year printed on the matter which is made available. The year of publication can be inferred from the Source linked to the name as an original combination, or explicitly noted in the Author
> Verbatim
> Verbatim year
section.
- If you only have reference to a single value, it goes in
year
(month, day) - If you have reference to two year values, the actual
year of publication
goes inyear
, and thestated year of publication
goes instated_year
. - If you have
month
orday
publication, they go inmonth
orday
. - The value provided in
verbatim_year
is always assumed to be the actual year of publication.
We assume that if two dates are known then the user will create and reference a Source
to record those values, i.e. there is no mechanism to provide and differentiate the two types of year directly with the name itself.

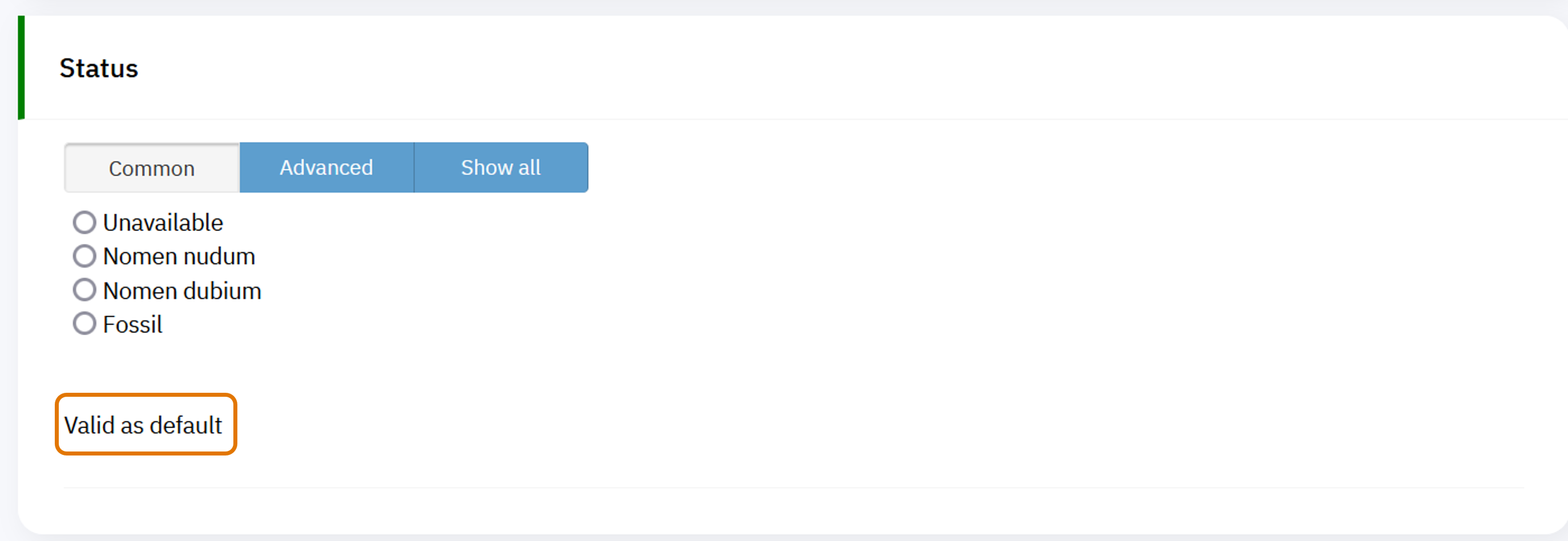

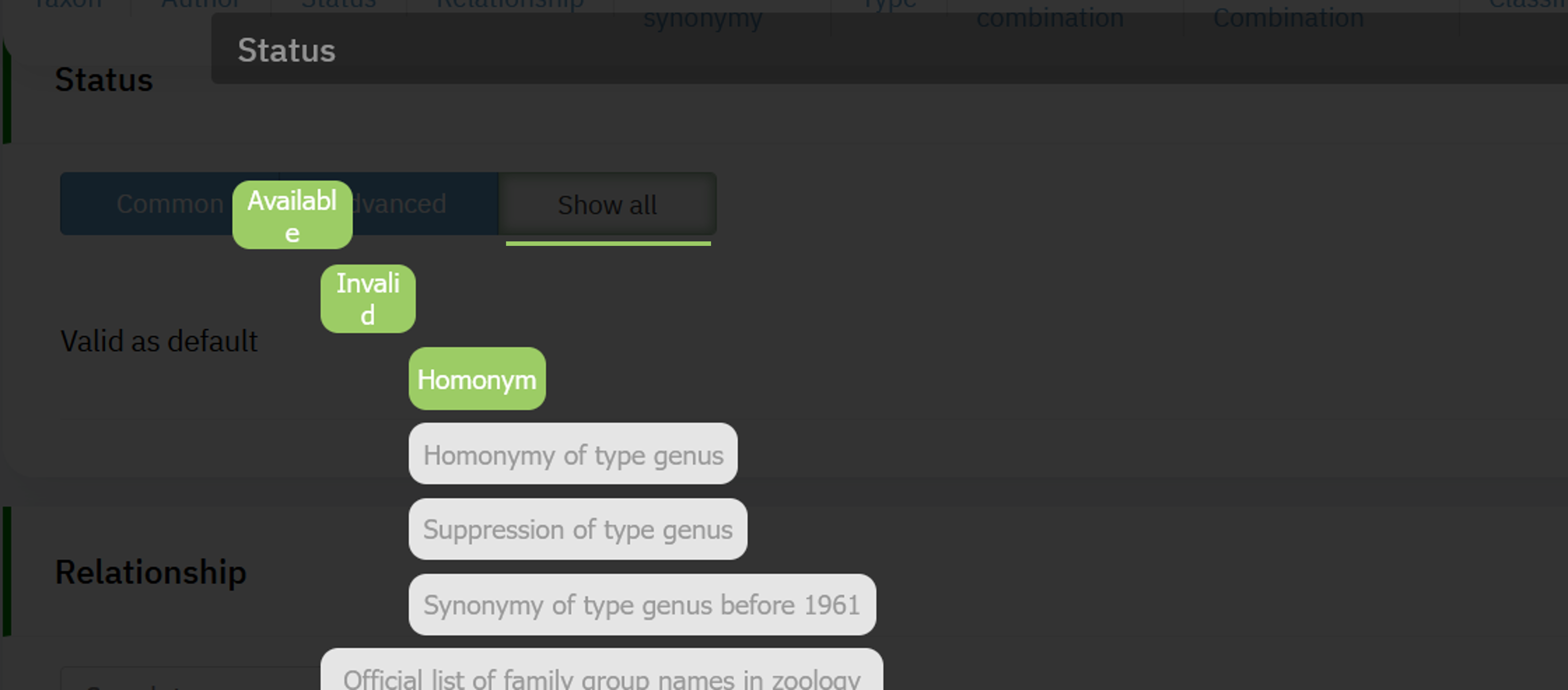

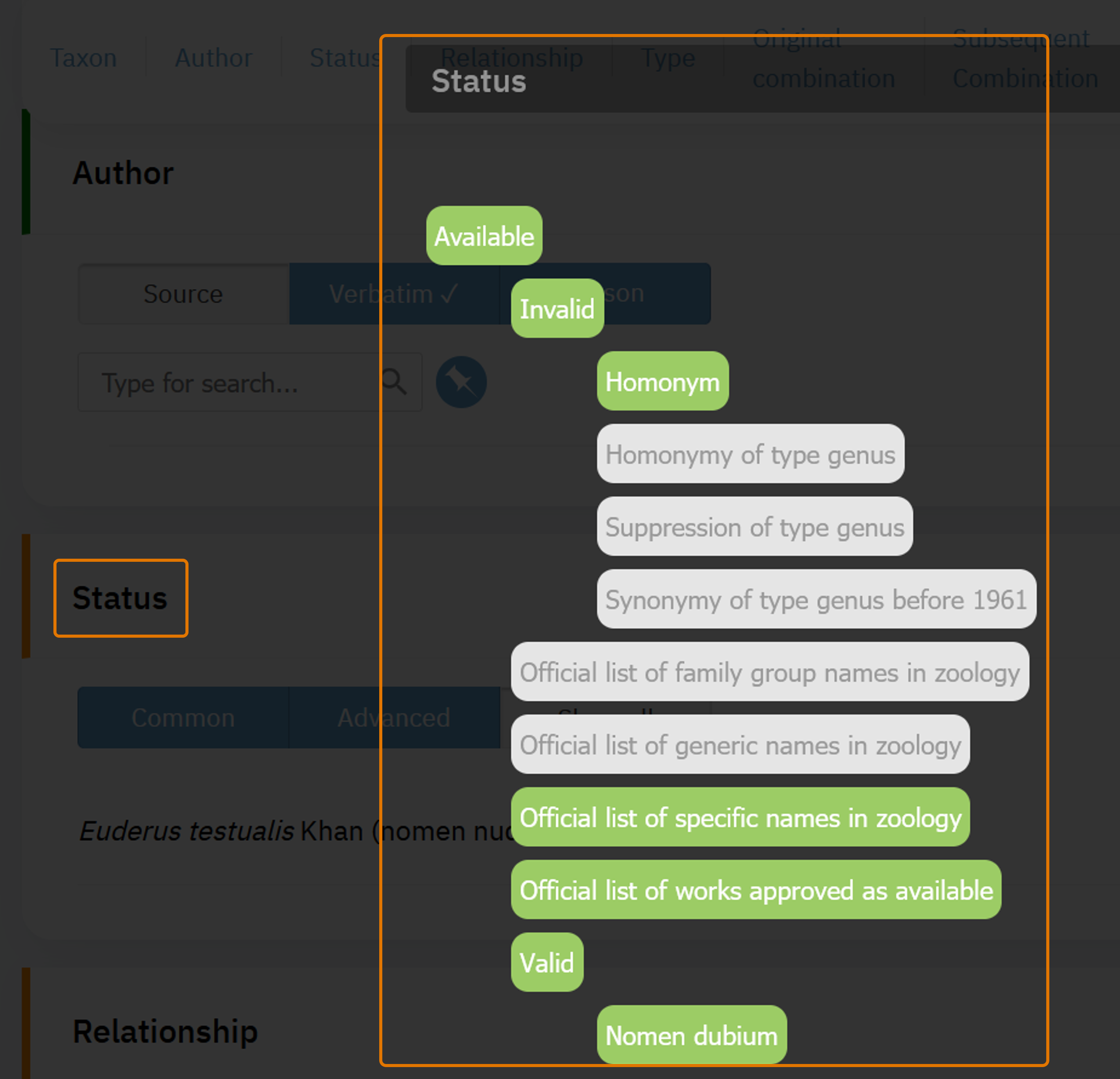

Nomenclatural Status
This section relates to nomenclatural statuses, which are applicable to the taxon itself and does not require any knowledge of related taxa (e.g., Nomen nudum
, Non binomial
)
- Multiple Statuses could/can be assigned to the same taxon
- Most common status are listed in the
Common section
, but all available statuses are listed inShow all
section. The statuses which are not applicable to a current taxon are greyed out. Advanced section
allows you to search for a specific status
Keep in mind.
- All names by default are valid names, i.e. a
valid
status should not be assigned to all the names in the database. Use of theValid
status is reserved for special cases, for example when the taxon has a nomenclatural history of being treated as a synonym, and later was treated as a valid name again, in order to preserve a historical record of synonymy, and override it, a statusvalid
could be added to the taxon, thecitation
on the status will indicate thesource
where the validity of taxon was confirmed. - Status
Homonym
could be added to the taxon to indicateinvalid
status in cases where thesenior homonym
is not known, but this should be avoided -- the better way to record homonymy is tocreate a relationship
(see below).

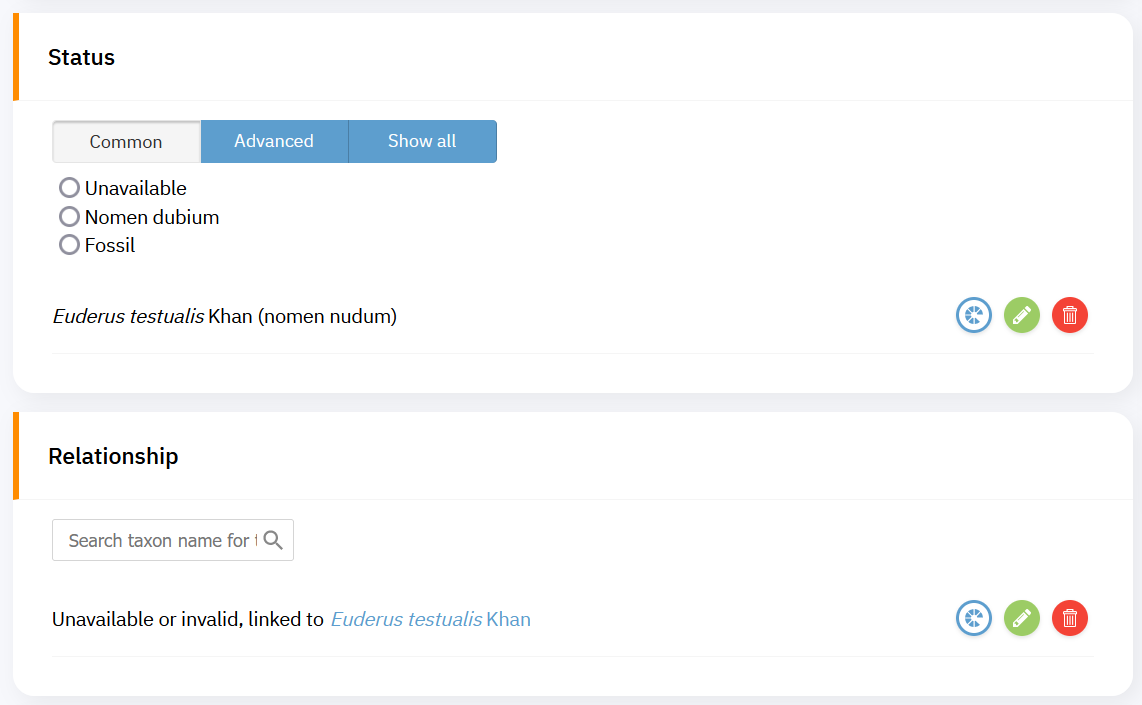

Example 1: Nomen nudum
- Select 'Nomen nudum', one of Common statuses
Relationships - a nomenclatural statuses bases on relationship with other taxon
The nomenclatural relationships are the statuses which require record of two Taxon Names. For example, 'Aus' is a synonym of 'Bus'. In this relationship we can get status for each of those two names 'Aus' is a Junior synonym, 'Bus' is a Senior synonym.
Keep in mind.
[START MORE EDITING HERE]
- Always start with (browse too, then edit) the invalid name and add relationships that reference the valid (or senior) name

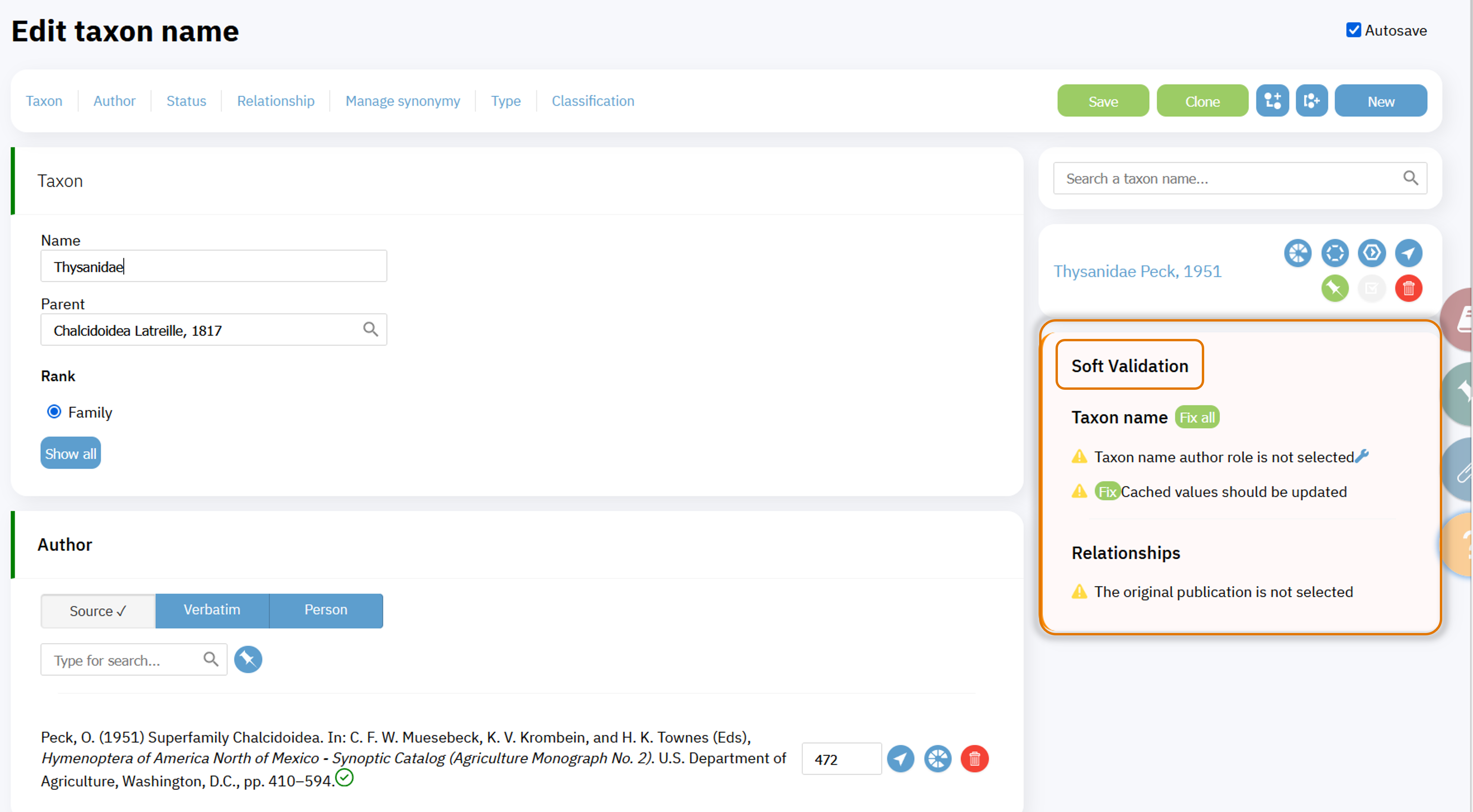

- Check the soft validation messages, they will let you know if what can be improved or added.
- When adding a relationship, select one that is as specific as possible, 'subjective synonym' is better than just 'synonym', 'primary homonym' is better than just 'homonym'

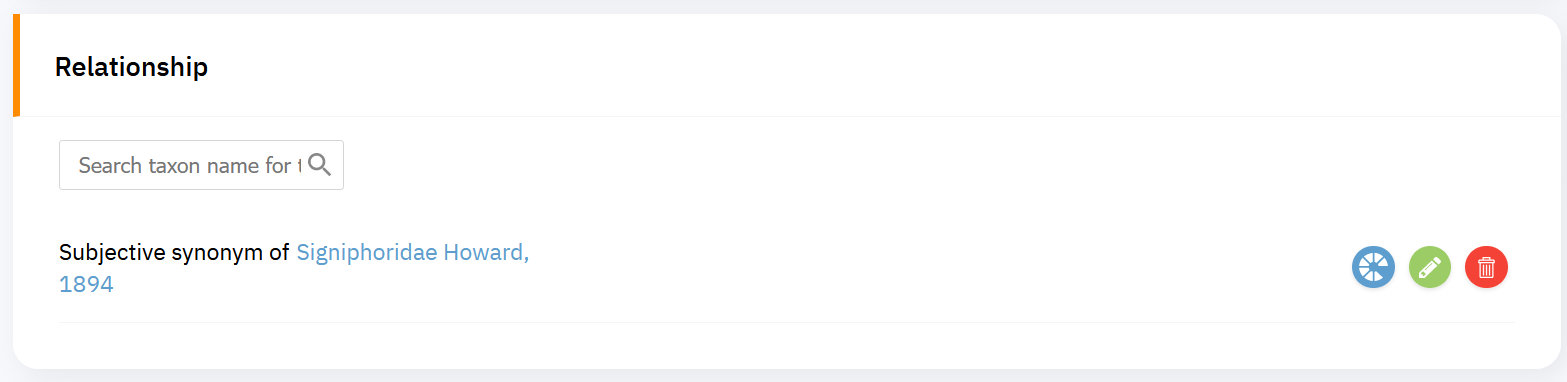

Example 1: Synonymy
- Although each relationship could be read in either direction (Aus is junior synonym of Bus, Bus is senior synonym of Aus) only one way recording the information is supported in TaxonWorks at the moment. The relationship should always start from invalid name. In our example it is 'Aus', so the editing should start on the Edit Taxon Page for 'Aus', to build a new relationship, search for the second (related) name, in our example it is 'Bus', and then select the status for this relationship, 'objective synonym'.
- Once the relationship is created a citation could be added to this relationship to indicate the Source, where this synonymy was first proposed.
- In cases of competing synonymy, where in one source 'Aus' is recorded as synonym of 'Bus', and in the next publication it is a synonym of 'Cus', both synonym relationship should be created in the database, if the citations are provided, the latest citation will be used to position the taxon in the classification.
- In cases where the name was reported as a synonym by mistake and was revalidated in a later publication, the relationship should not be deleted, a 'valid' status could be added to the taxon to overwrite the synonymy (see above)
Example 2: Homonomy
If we know that Aus aus
is a homonym of Bus aus
, and that Aus bus
is a replacement name, then we have to express two "facts", i.e. relationship between taxa, in this case 1) A. aus
is a synonym of B. aus
, 2) A. aus
is replaced by A. bus
. Both of those statemens are invalidating statemens, so both of them start with the taxonomic page for A. aus
The basic steps:
- Ensure all 3 protonyms exist in the database (
aus
,aus
,bus
) - Navigate to the invalid name
Aus aus
- Create the first relationship: Select the senior homonym name
Bus aus
and a homonym relationship (be specific: 'primary homonym' or 'secondary homonym') - Create the second relationship: Select the valid name (replacement name)
Aus bus
and add a synonym relationship ('replaced by' or 'subjective synonym of', the second option is true when the substitute name was selected from one of the junior synonyms)
Example 3: Misapplication
If we know that Aus aus Author2
is a misidentification of Aus aus Author1
, and that Aus bus
is a correct name, then we have to express two "facts", i.e. relationship between taxa, in this case 1) A. aus Author 2
is a misidentification of A. aus Author 1
, 2) A. aus
is invalid name for A. bus
. Both of those statemens are invalidating statemens, so both of them start with the taxonomic page for A. aus
The basic steps:
- Ensure all 3 protonyms exist in the database (
aus
,aus
,bus
). Additional protonym should be created in the database fo 'Aus aus Author2' different from the correctly applied name 'Aus aus Author1' - Navigate to the invalid name
Aus aus Author2
- Create the first relationship: Select the correctly applied name name
Aus aus Author1
and a 'misapplication' relationship - Create the second relationship: Select the valid name
Aus bus
and add non specific 'invalid, linked to' relationship (do not use 'synonym' relationships, since misapplication is not an avaliable name)
Misspelling
Is created the same way as misapplication
Original combinations
The original combination is required to keep track of the taxon history, properly handle parentheses in the author string, and also to validate homonymy between taxa. There are two ways to enter the original combination in TaxonWorks
Cititing the original combination
To cite usage of the original combination cite the taxon name (Protonym) itself. This is because you are citing the fact that a) there is some name that b) came into existence in some first use, i.e. the definition of a Protonym.
Method 1 (when the original combination is different from the current combination)
- To properly handle taxonomy, always enter taxon name (basic information) in the original form (e.g. species was described as Aus albus Author, now it is Ba alba (Author), the name of the taxon should stay as 'albus', the form transition will be handled by the genus gender and the species part of speach.
- To build an original combination, first move the name of the taxon to the nomenclatural rank level, at which it was originally described. This is important, because a species could be originally described at the subspecies level.
- Select the original genus and if needed the original subgenus, assuming those taxa are already in the database (if they are not, enter a separate browser tab and enter missing names in the classification.
- The rank of each name could be adjusted, the name could be dragged up or down.
Note: if the original name has an incorrect spelling which had to be corrected (e.g. 'mülleri' or 'albi-lineata'), or the original genus was misspelt, two protonyms have to be stored in the database. The first one with the correct spelling and the second one with the original spelling. The second protonym should be linked to the first one with the 'Incorrect original spelling' relationship. This relationship also overrride the restriction on the Taxon Name spelling, if you cannot create a taxon because it is incorrectly spelled, put the corrected spelling for the name, save taxon, add 'misspelling' or 'incorrect original spelling' relationship, change the taxon name to the misspelled form and save it again.

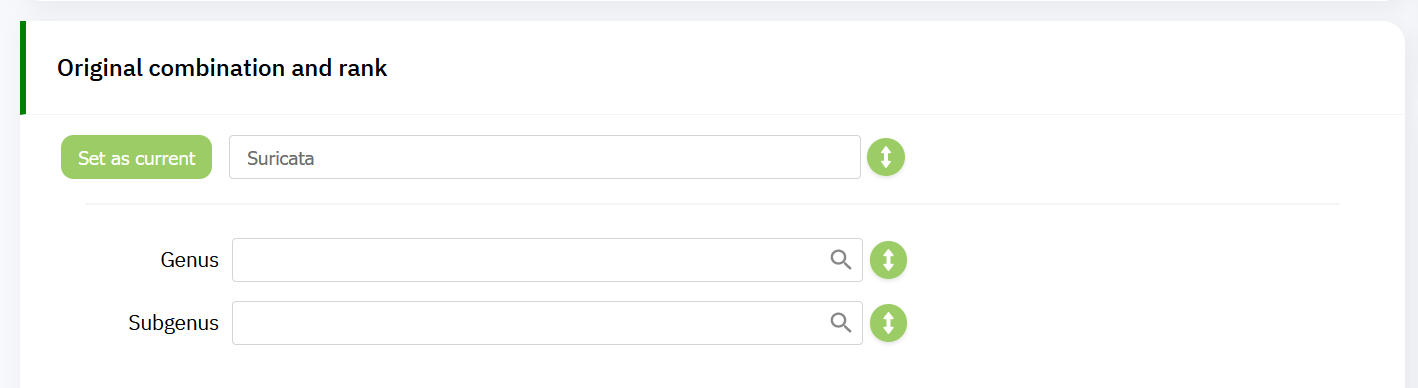

Method 2 (when the original combination is the same as the curent combination)
- Click the button Set as current

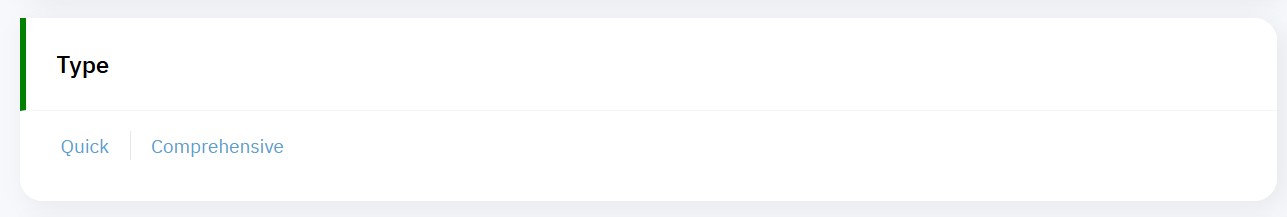

Type metadata
Genus and Family group names
Data can be added directly in the Type section
Species group names
See also the basic article parsing manual for a walk through that addresses many of these issues in a more contextual framework.

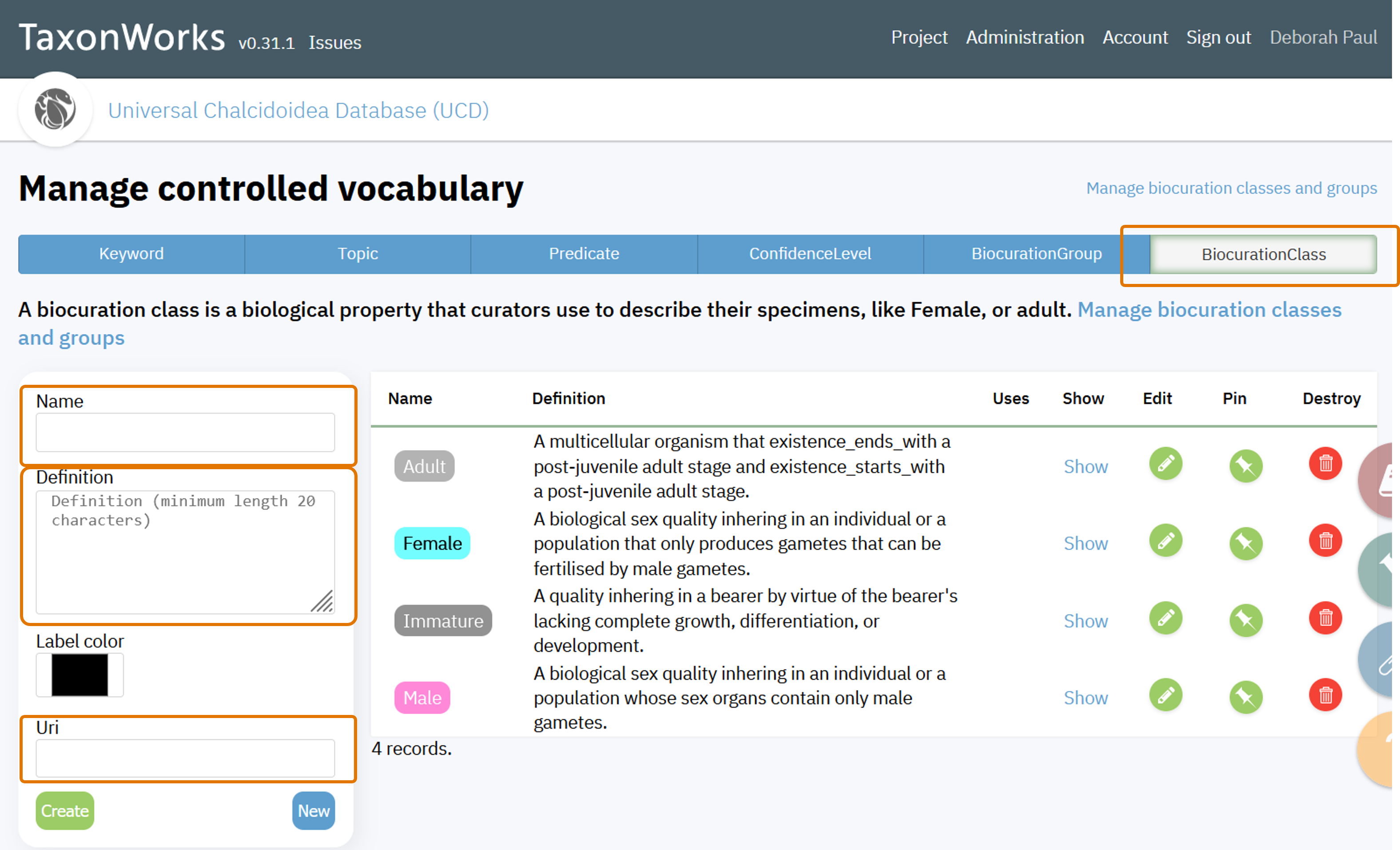

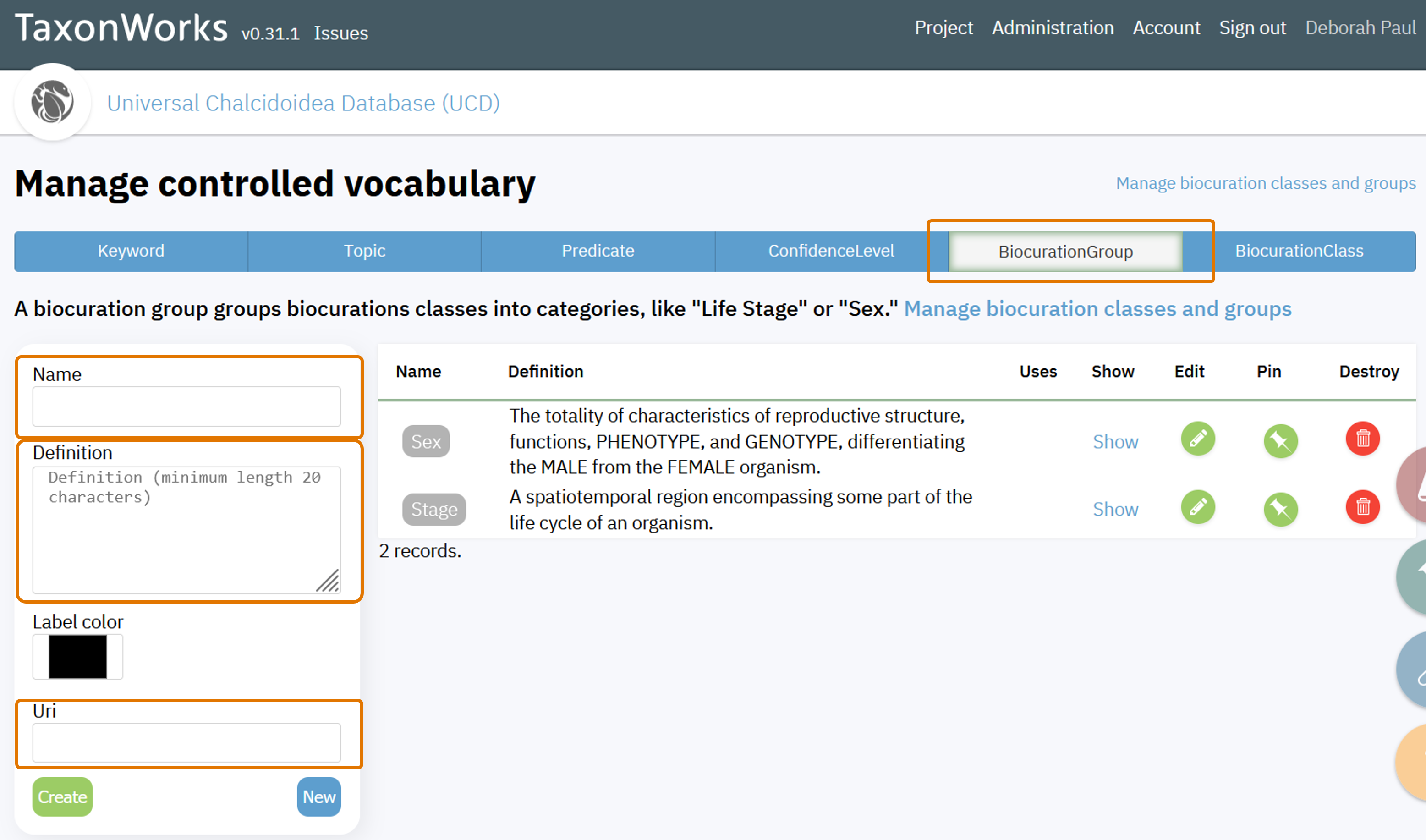

Before you start: 1) Add biocuration classifications that you might reference (e.g. Male
, Female
, Adult
etc.). Do this by adding a new Controlled Vocabulary Term of type BiocurationClass

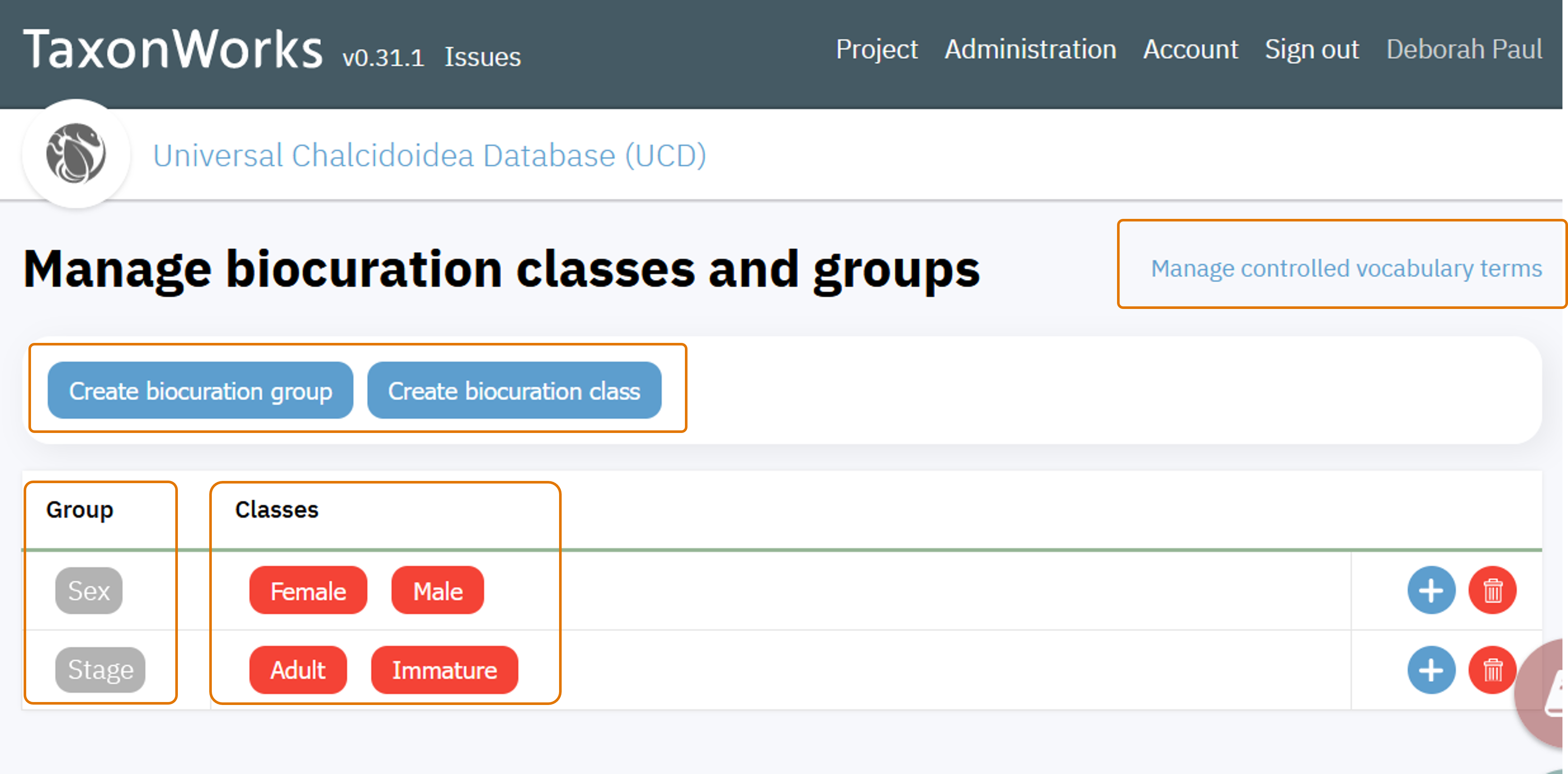

or using the Manage biocuration types and groups
task. You only need to do this once in your project.

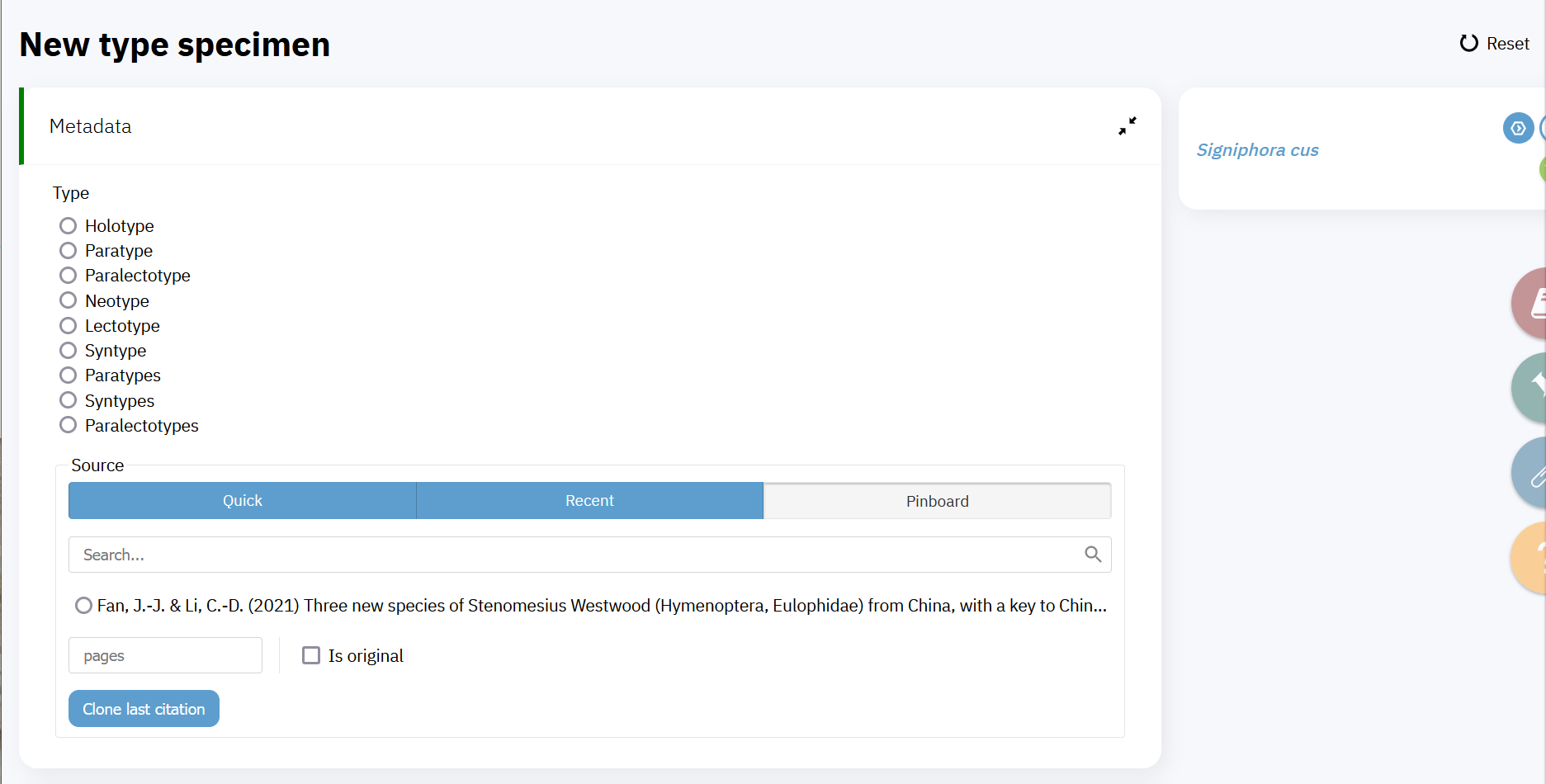

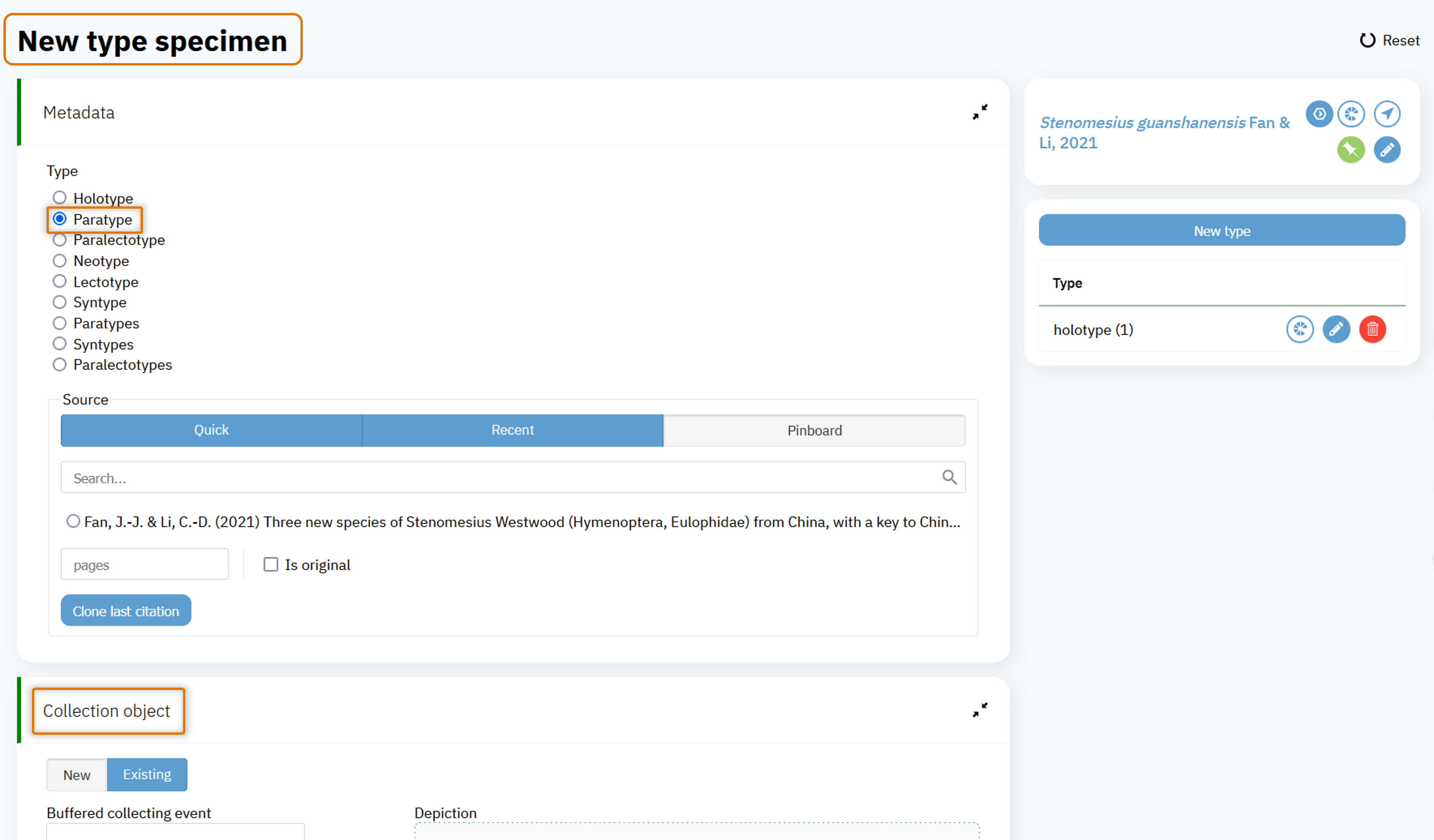

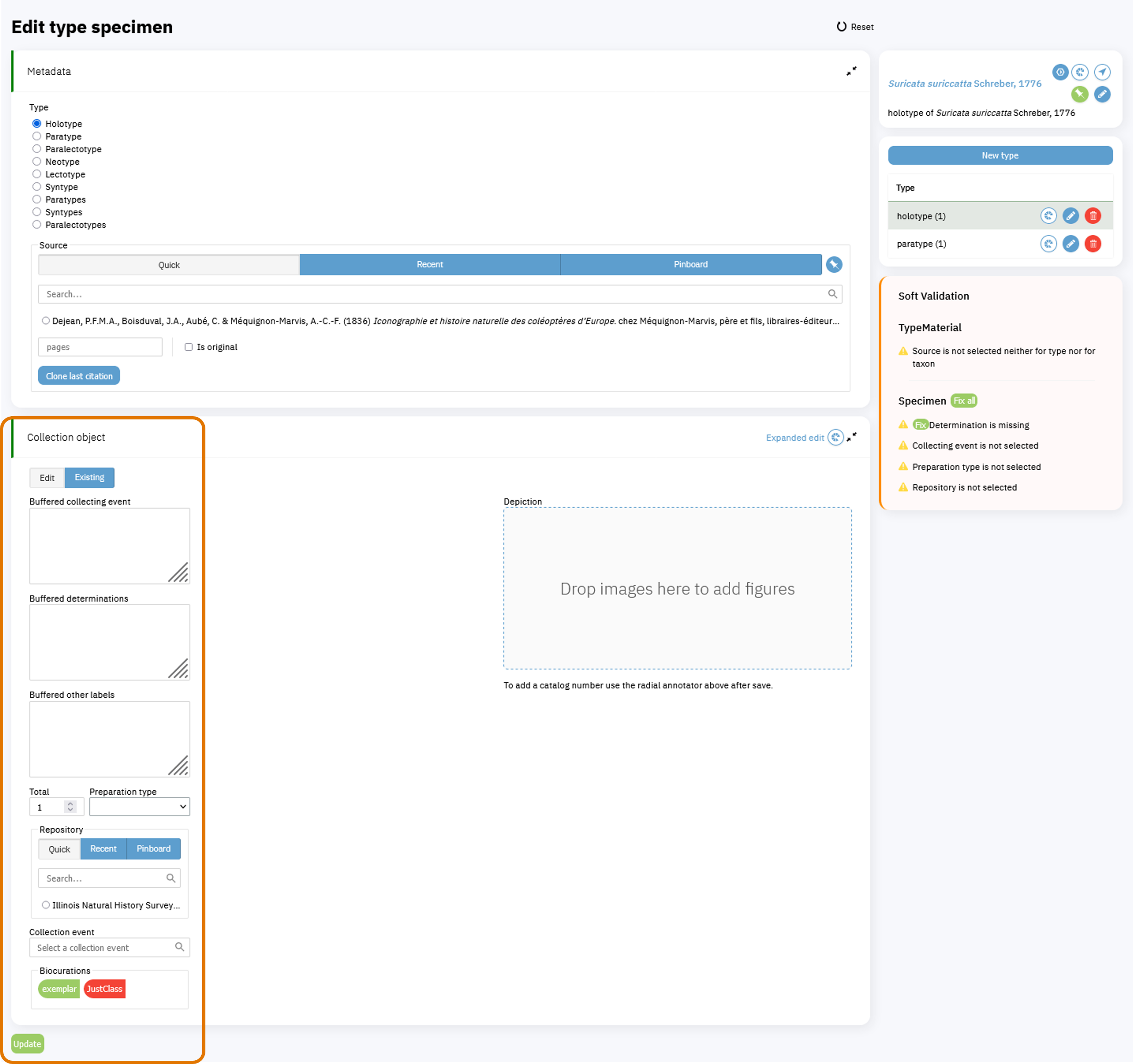

Either access the task New type specimen
through the New taxon name
task in the Type
section or directly from the tasks tab (filter by Nomenclature
on the left to quickly find the task).
- Select the type (holotype, paratype, etc.), this unlocks the Collection object form below.
- If the type designator is not the same as the either 1) the original citation on the species Protonym or 2) the original citation on the type material record then select the type designator if known. The designator will be inferred from the aforementioned citations otherwise.
- At present, if you have created a collecting event find it by id (the current searc is a stub, and very crude), otherwise add verbatim data to the "Buffered" sections, these data persist with the collection object, to be transcribed into collecting events, determinations records, etc. some time downstream in the digitization process.
- Select the Biocuration classes you want by clicking on a green button (remember green in TaxonWorks means create a record). This creates a record indicating that the collection object is that class. The button will turn red (remember red in TaxonWorks means destroy a record). Clicking a red button will remove that classification from the object.
- Select a repository
- Click create. Your record will be added to the right side of the form, you will see it highlighted by type type in a light green. That means the form on the left can be used to edit that record.
- Click 'New type' to add another record (e.g. paratype).
Family group names
Several categories for the family group name exist: original family group name form; incorrect original family group name form; subsequent family group name form; misspelling. All of them could be added to the database as individual Protonym linked to the correct family group name form (valid or synonym) with single TaxonNameRelationship For example Aini is "family group name original form of" Ainae
Citations
Incertae sedis
Incertae sedis implies a relationship between two protonyms. Any time something you want to express references two protonyms you must use a Taxon Name Relationship to express this data. For the name in question select the "parent" under which it should be placed, then select the relationship.
Misidentifications
Misidentifications are a tricky gray area. Remember that we only care about the nomenclatural consequences of the use of the names in questions. Taxon Identifications are linkages of OTUs to Collection objects, this is the preferred mechanism for linking one or more identifications to a collection object.
A question from a user reflects the trickiness:
- Imagine there is a genus Aus, with type species Aus bus. Then someone describe a new species Aus cus, which subsequent authors don't even consider to be in the same superfamily. So I cannot enter Aus twice because the second one is a misidentification but no one knows for sure what it is.
- This is just an original genus. This is the same genus in both species. The genus cannot be misidentified. This is just a position of the species in classification, regardless where it was originally described or subsequently placed.
The proper way to hand this is to use a single Aus, which is placed in the correct family. In both species Aus is the Original genus, in Aus bus, this is also a Parent taxon. In case of Aus cus, if the current genus is not assigned, the superfamily is the parent taxon. An incertae sedis relationship should connect Aus cus and the superfamily
- Species misidentification/misapplication.
- Misapplication itself does not make an available name. But this a common practice to include misapplication in the list of historical usages of the taxon names, especially in the cases where a new name is proposed as a "replacement" for a previously misidentified species. Remember, that nomen novum cannot be proposed for misapplication, since it requires a previously available name, but invalid because of homonymy. To record this in TaxonWorks, a new Protonym for a misapplied name should be created in the database. This Protonym should be linked to two other Taxon Names with two Taxon Name Relationships. The first relationship is to an available name with the same spelling (it could be a valid name or a synonym). The relationship type is "Misapplication". The second relationship "Invalidating" relationship should link this TaxonName to the correct name for this taxon. Remember, the "Synonym" relationship is not applicable here, since it assumes that both names are available name, and in this example Misapplication is not an available name. Follow the soft validation messages for other essential information for the Protonym in the database.
An example: The name Aus aus Author 1, is misapplication for Aus bus, and Aus aus Author 2 is completely different species.
After the Protonym for the first name is created two relationships will be added in the database:
- Aus aus Author 1 Misapplication, linked to Aus aus Author 2
- Aus aus Author 1 Invalid, linked to Aus bus
Once the misapplication is created, an OTU could be linked to the TaxonName, which could be used, for example, for taxon determination.
Navigation helpers

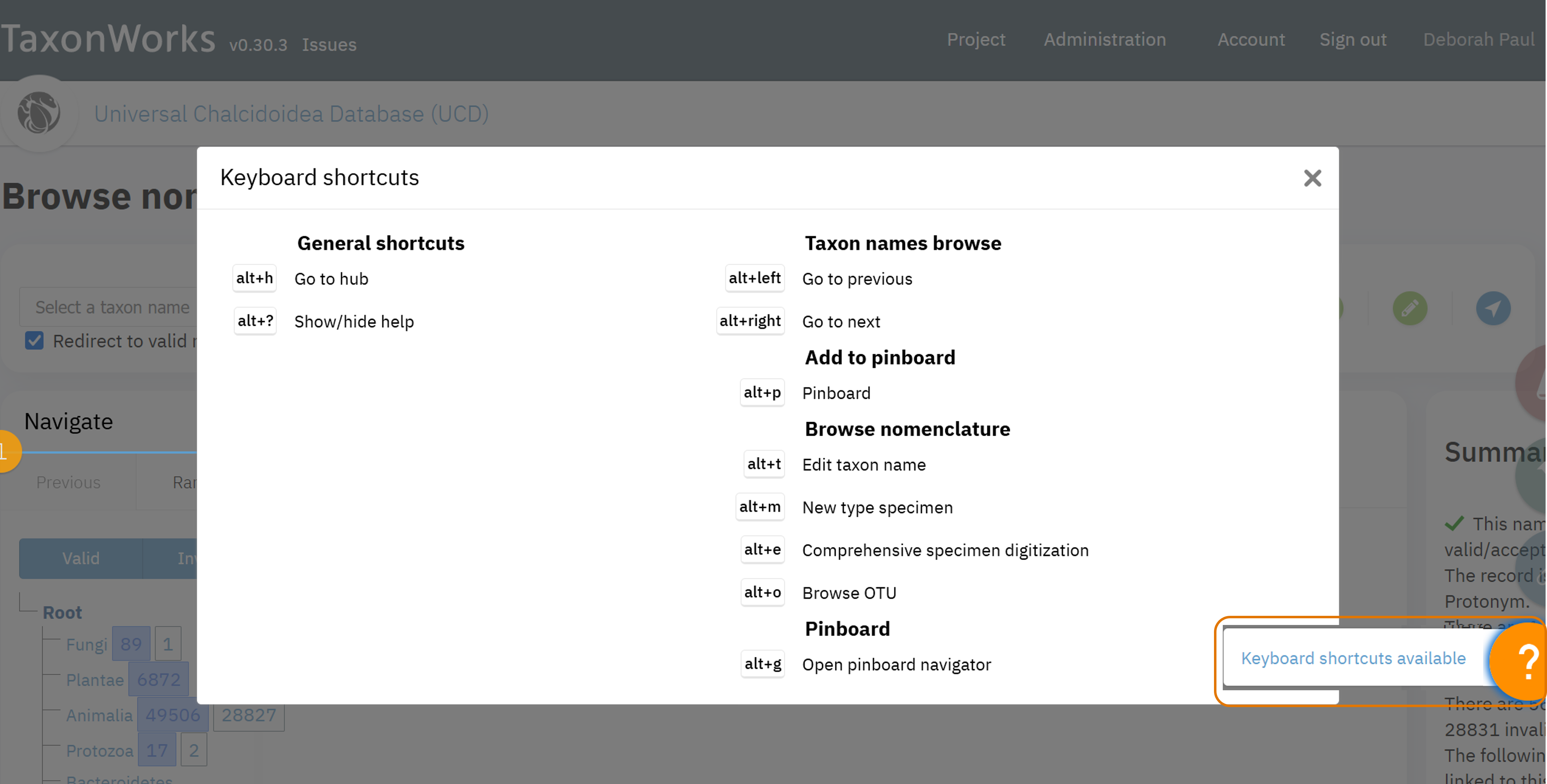

Hotkeys.
TaxonWorks has many hotkeys that can greatly improve productivity if mastered. Click the orange help circle, then the 'Keyboard shortcuts' slide-out to see an up-to-date list of hotkeys.
Mac computers use 'ctrl' as triggering key, PCs use 'alt'.
While on New/Edit taxon name there are extensive options:
- ctrl+s Save taxon name changes
- ctrl+n Create a new taxon name
- ctrl+p Create a new taxon name with the same parent
- ctrl+d Create a child of this taxon name
- ctrl+l Clone this taxon name
- ctrl+e Go to comprehensive specimen digitization
- ctrl+p Create a new taxon name with the same parent
- ctrl+m Go to new type material

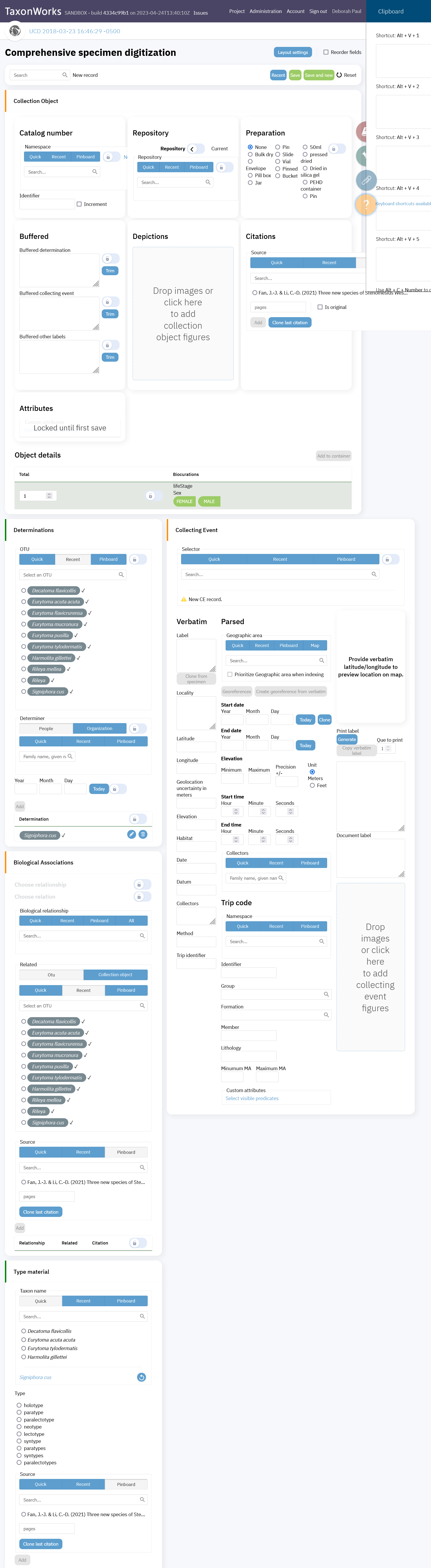

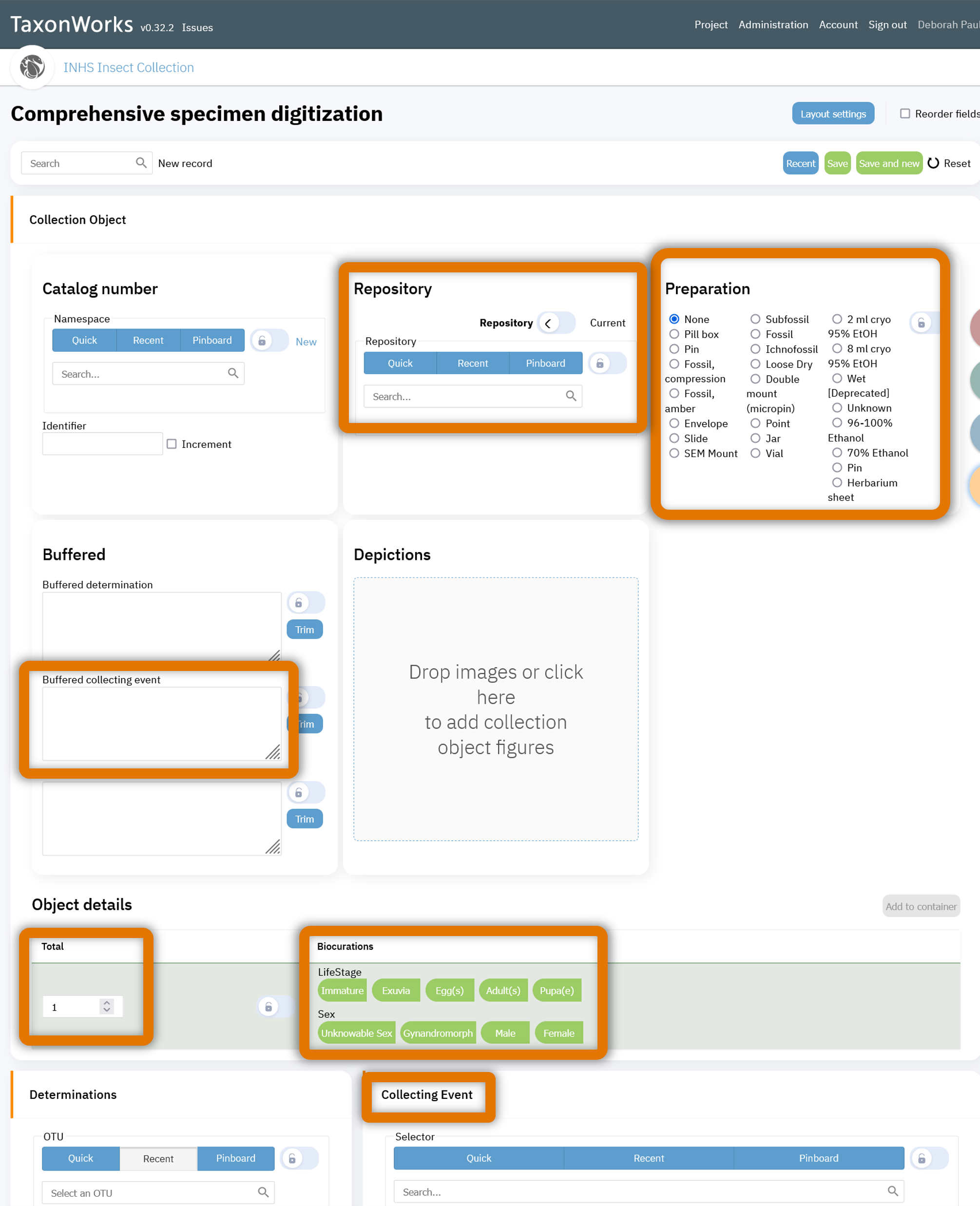

- ctrl+c Go to comprehensive specimen digitization
- ctrl+b Go to browse nomenclature
- ctrl+o Go to browse otus

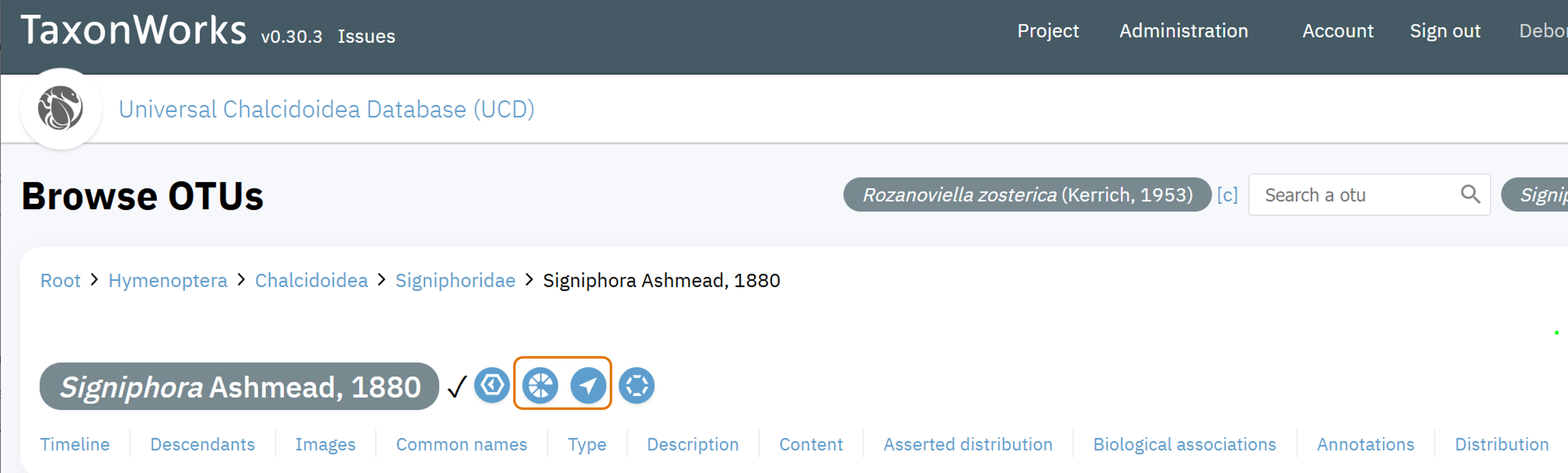

Additionally, on any browse/show page you can:
- ctrl+p - automatically pin and default that name to the pinboard
- ctrl+g - pop-up a quick navigation modal that lets you navigate to the defaulted records
Help
- Their is currently NO useful help from the orange slideout on the right, this will change as text appears here and migrates to the native help system.
Understanding the data model
- Concepts, at a low level, are gradually being documented here https://github.com/SpeciesFileGroup/taxonworks_doc/tree/master/concepts (see the TaxonWorksNomenclature.pdf, you can zoom in to see details).
Nomenclature, not biology!
- A reminder, if you want to record information about biology (hosts, parasites, distribution, etc.) that doesn't belong in the nomenclature section, you will use the OTU radial icon or OTU nav icon to access and record those data from a nomenclatural context.
FAQ
Can you describe how the authorship label for a name is determined?
Authorship of a name can asserted in 4(!) different ways. That seems confusing at first, but determining what gets shown is pretty straightforwrd.
The authorship label is determined by the FIRST option in the following list that is true. All other values are referenced only in validation reports.
- If the
verbatim name
field is filled out, then it is used. - If People are assigned as TaxonName authors, then their family names are used.
- If People are assigned to a Source as authors, and that Source is the original source for the taxon name, then their family group names are used.
- If the
author
field of a Source is filled out, then that field is used.
There are a lot of options for assigning the authorship of a TaxonName, which is the preferred way?
The preferred mechanism is to link the TaxonName to a Source, and assign authors (People) to that source (third option in the list above). This is the most granular way of creating the data, and therefor it will ultimately give you the most flexibility in reporting and validating the data.
Do you have any instructions on how to change combinations or enter new synonymies in TW?
Please follow the instruction in the Nomenclature Basics.
How do I find out where types are deposited, do you not yet have this function in TW?
Specimen deposition could be assigned to Specimen. If you create the type specimen for the Taxon Name, there is a field for the type repository. To create the type specimen follow one of the links provided in the Edit Taxon Name task, either Quick or Comprehensive in the Type section. Quick type specimen task allow to copy the entire verbatim-label information. The Comprehensive collection object allow to provide more detailed information about the specimen.
How do I get to the place in TW where I can add a new basionym? I need to try it out and see what happens.
For ICN names, the basionym have to be creaed as a separate protonym and linked to current name with basionym TaxonNameRelationship For ICZN names, the original combination of protonym is an equivalent of basionym in botany.
How would I remove a name from synonymy?
You can symply delete the Synonym Taxon Name Relationship. But when the name has been historically treated as a synonym, and subsequently was restored, the best practice would be to preserve both treatments in the database. Keep the synonym Taxon Name Relationship with its original citation in the database. Add the nomenclatural Status Valid to the name. This status will overwrite the Taxon Name relationship. Please remember to add the citation to the status, to know where and when the name was reinstated.
What is the word form for "arbitrary combination of letters"?
The word form is "noun in apposition"; etymology "arbitrary combination of letters"
How to record in the database a situation when a taxon, species or genus, is moved from one family to another?
Edit TaxonName task has a special section for this, Classification. Select the family-group name, and the relationship Classified as. This could be used for original placement of the taxon, or for the subsequent classification. Once the Taxon Name Relationship is created, assigne the citation using the radial annotator.
How to record a nomen nudum that was "subsequently validated"?
ICZN does not provide a procedure to "validate" a nomen nudum. Once unavailable, the taxon name keeps this status. The taxon could be described in a subsequent publication by the same or a different author(s), with the same or a different spelling. Both names in TaxonWorks should be regarded as separate protonyms. Nomen nudum should be marked with one or several of the appropriate nomenclatural statuses: nomen nudum or, preferrably, a more specific one, for example nomen nudum: no description. Once the valid name is described and the second protonym is entered to the TaxonWorks database, the nomen nudum could be linked to the available name (valid or invalid) with a TaxonName Relationship "unavailable or invalid".
How to enter the author for misspeled name?
The name which is not spelled correctly, the original source, where the misspelling was introduced, is still required. The role is not require, because the author string is always generated from the correctly spelled protonym. Protonym of misspelled name is linked to the correctly spelled name with the Misspelling TaxonNameRelationship.
How can I record the history of the taxon which had several historical Incertae sedis placements?
The incertae sedis relationship always correspond to the current placement of the taxon. For example, a species assigned to the family, instead of proper genus as a parent. Normally, this will be marked as an invalid placement, the incertae sedis relationship helps to override the error. For historical placements, a different relationship should be used: source classified as.
FAQ related to family-group names
Is it possible to link a note to a family group name to specify what the original spelling is, at what level it was proposed and when?
Another protonym with the original spelling should be created in the database. Clone button could be used to replicate all information from the current family-group name. This new taxon name should be linked to the original name using special Taxon Name Relationship Incorrect original spelling or Family group name original form. TW could be restrictive in the ending of the original name before you assigne the relationship, so it is recommended to save the Taxon Name with the proper ending, add the ralationship and return back to modify the Name to the original form. And save Taxon Name again. Assigning the relationship removes the restriction on the family-group name form and ending.
What protonyms do I need to create for each form of the family-group name?
Individual protonyms should be created for original and each subsequent form of the family group name. Each protonym should be linked to the current form with the "Family-group name form" or "Family-group name original form" relationships
To which ranked Protonym do I attach the type genus?
The type genus shoild be attached to any available family-group protonym.
Do I have to re-attach the type genus to each family group protonym?
If there are several coordinate names with the same type genus (for example, a family with nomynopypical subfamily), the same type could be automatically assigned from one to another through the Soft Validation fixes.
FAQ related to genus-group names
Do I have to create nominotypical subgenus or subspecies manually?
When a new subgenus or subspecies created and the parent taxon does not contain any other sub- taxa, you can see the soft validation message like this: "The parent species of this subspecies does not contain nominotypical subspecies". TaxonWorks can detect and created the nominotypical subgenus and subspecies automatically when running Soft validation fixes, but now it could only be done programmatically. Before the fix is implemented to the interface, it is advisable to created the missing subgenus or subspecies manually.
To which rank should I attach the type species in cases where nominotypical genera exist, genus, or subgenus? What if I have done the opposite?
The type species should be attached to each available protonym. If the type species is attached to either genus or subgenus, it could be automatically re-assigned to the other through Soft Validation Fixes.
Does the attachment of the type species differ if the nominotypical subgenus came with, or after the original description of the genus?
According to the ICZN Art. 43, a name established for a taxon at either rank in the genu-group is deemed to have been simultaneously established by the same author for a nominal taxon at the other rank in the group; both nominal taxa have the same type species, whether it was fixed originally or subsequently. Changes in the rank also do not affect the type genus designation.
FAQ related to species-group names
I have a species which was originally described in genus which obviously lies outside the scope of my group. How can I use this genus in the original combination?
The genus name have to be entered into the classification before the use. It may have to Root assigned as the parent, or, preferrably, the basic classification (class, order, family) could be provided as well.
Do I have to create a nominotypical subspecies?
See the description above for the nominotypical subgenus.
Which ranked name should I attach the type material to, species, or subspecies?
The type material could be attached to the coordinate taxon of any rank (species, subspecies, superspecies). The Soft Validation Fix will help to re-attache the same specimen to different ranks. Multiple specimens should not be created.
When creating protonym, what names should I put in Original combination fields?
When selecting Original genus for a species, sometimes two options are available: a valid genus name and coordinate subgenus with the same name("Aus" and "Aus (Aus)"). In cases like this the preference should always be given to the lower coordinate taxon name ("Aus (Aus)"). If the genus name is selected instead, you will get a soft validation waring "Original Combination: Relationship should move from genus to subgenus". This is not a critical error. TaxonWorks can detect and automatically move the relationship from a genus to coordinate subgenus. But at the present implementation, it could only be done programmatically.
